Wipers Intermittent Speed Inoperative

*WIPERS INTERMITTENT SPEED INOPERATIVE

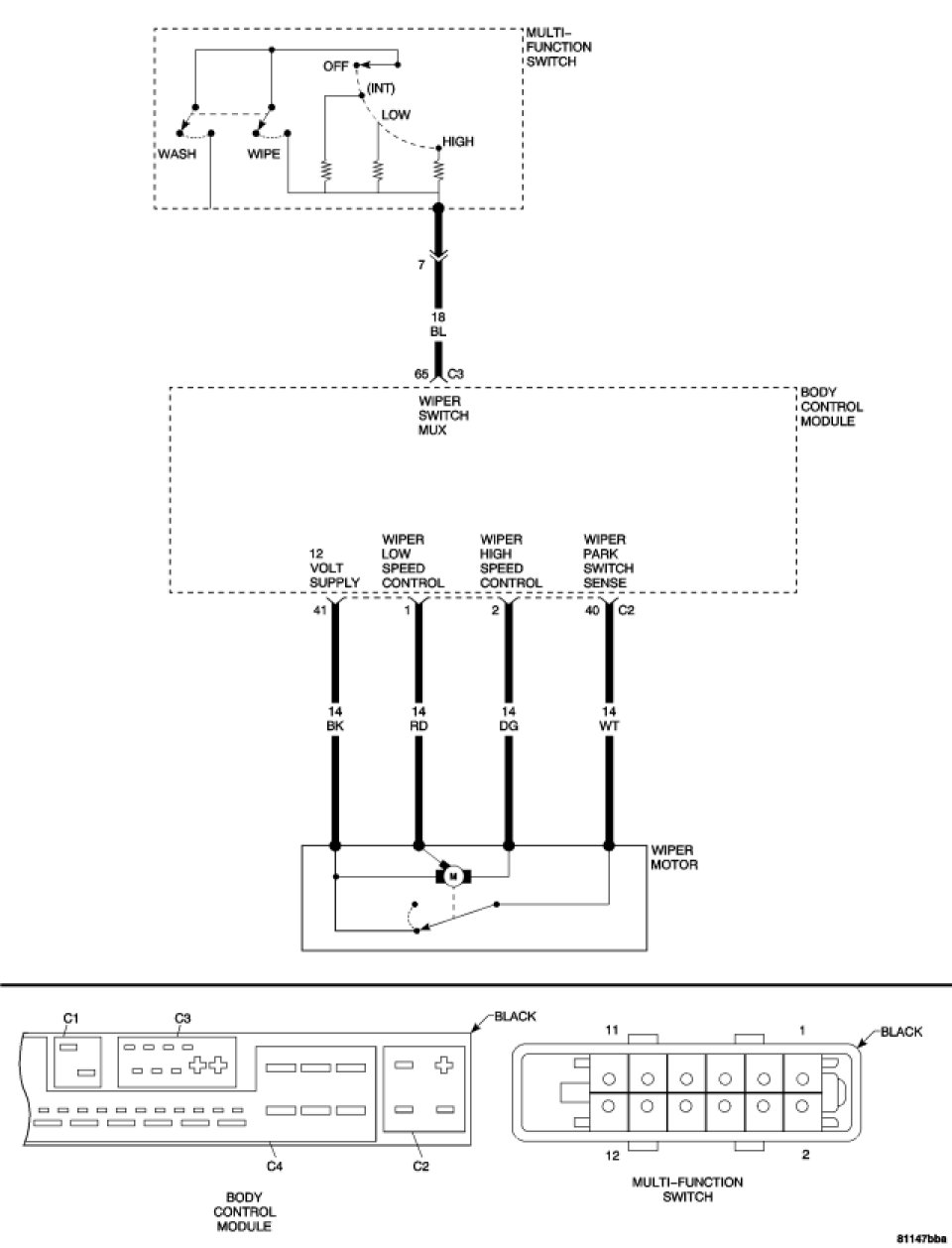

For a complete Wipers/Washers Circuit Diagram, Schematics and Diagrams.

Diagnostic Test

1. MEASURE WIPER SWITCH MUX CIRCUIT VOLTAGE




NOTE: If any BCM DTCs are set, diagnose them first before continuing.

Disconnect the Body Control Module (BCM) connector.
Turn the ignition on.
Measure the BCM C3 harness connector cavity 65 for voltage with the Wiper Switch in the Intermittent position.
Is the voltage approximately 12 volts?

Yes

- Replace the Body Control Module. Body Control Module - Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Multi-Function Switch. Removal.
- Perform BODY VERIFICATION TEST. Body Verification Test
