Washer Fluid Level Switch: Diagrams

Component ID: 352

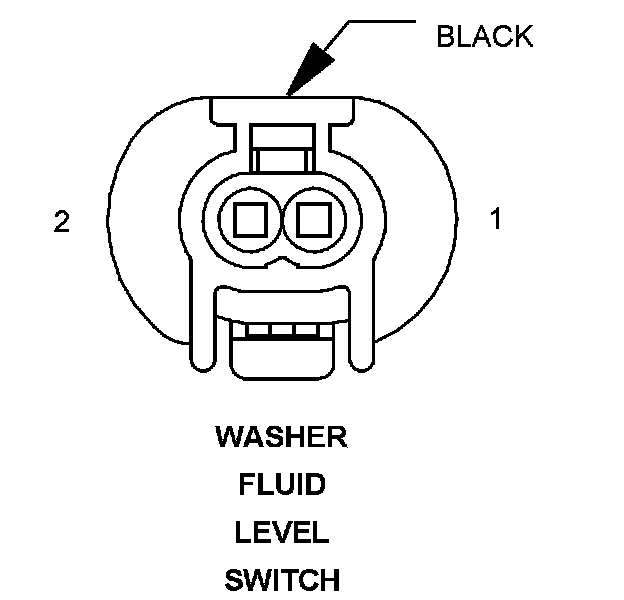

Component : WASHER FLUID LEVEL SWITCH

Connector:
Name : WASHER FLUID LEVEL SWITCH
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR COOLANT/WASHER LEVEL RETURN
2 20BR/BL COOLANT/WASHER LEVEL COMBINATION
