Removal

REMOVAL





1. Remove inside rear view mirror.Automatic Day/Night Mirror - Removal.
2. Remove cowl cover.Removal.
3. Remove upper windshield molding (2). Removal
4. Remove windshield side moldings (1). Removal




WARNING: WEAR EYE AND HAND PROTECTION WHEN HANDLING GLASS. PERSONAL INJURY CAN RESULT.

CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.

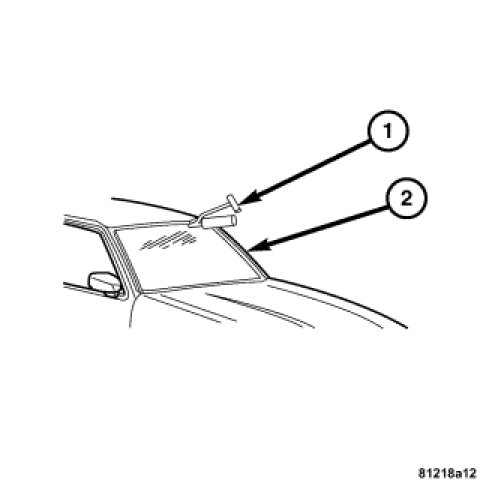

5. Cut urethane bonding from around windshield (2) using a suitable sharp cold knife (1). A pneumatic cutting device can be used if available.
6. Separate windshield (2) from vehicle.
