Left Front Power Window Motor

Component ID: 178

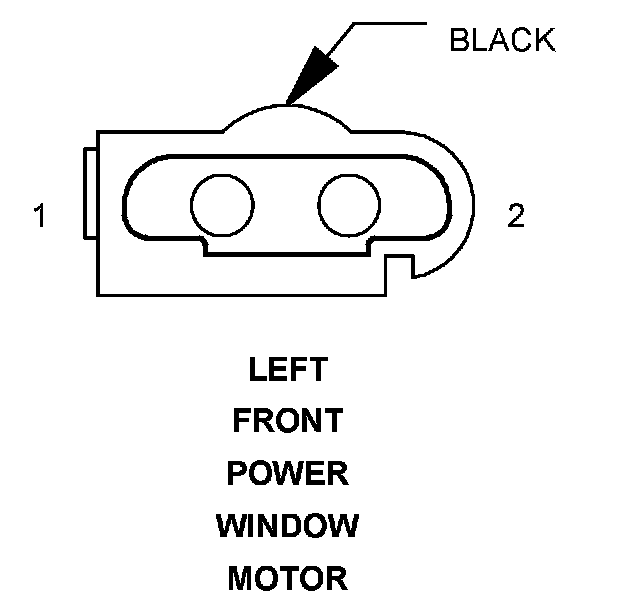

Component : LEFT FRONT POWER WINDOW MOTOR

Connector:
Name : LEFT FRONT POWER WINDOW MOTOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 14DG LEFT FRONT POWER WINDOW DRIVER (UP)
2 14BK LEFT FRONT POWER WINDOW DRIVER (DOWN)
