Installation







INSTALLATION

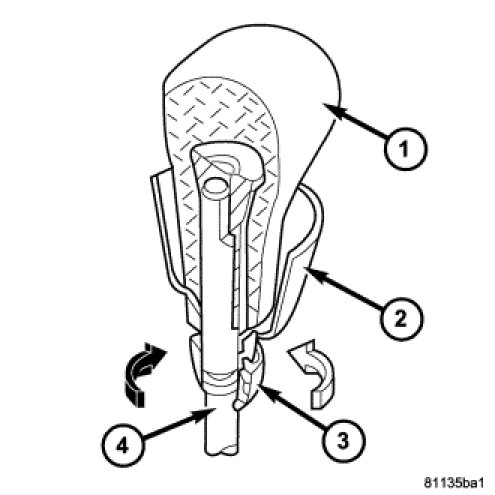

1. Install the shift handle (1) on the shift rod (4).
2. Push down on the handle and tighten the retainer nut (3) counterclockwise (upward) until it is snug.
3. Push the shifter cover (2) down over the retainer and shift rod (4).
