Home >> Chrysler >> 2008 >> Crossfire V6-3.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Removal and Replacement >> Detent Plug >> Installation

Installation







INSTALLATION





1. Smooth any burrs or nicks in the detent plug bore.

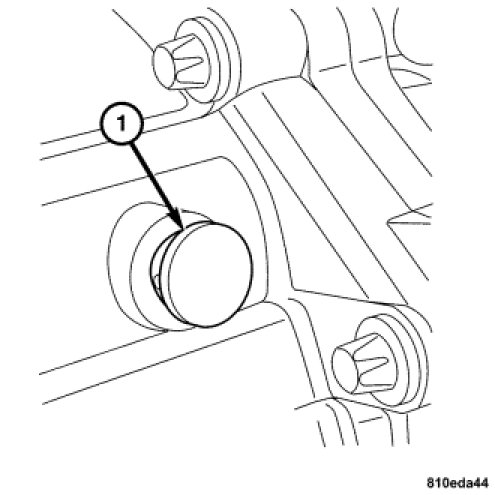

2. Use a plastic mallet to drive in and fully seat the detent plug (1).
3. Install the transmission in the vehicle. Manual Transmission/Transaxle - Installation.
