Input Shaft Seal
>>
Removal
Removal
REMOVAL
1.
Remove the transmission.
Manual Transmission/Transaxle - Removal
.
2.
Remove the
clutch release bearing
/slave cylinder.
Removal
.
3.

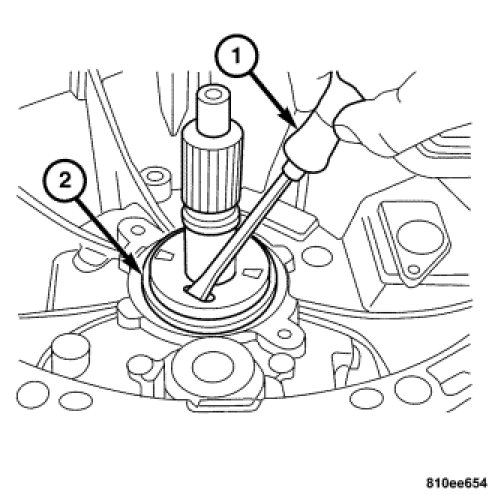

Use a screwdriver (1) to pry out the input shaft seal (2).
