Removal

REMOVAL

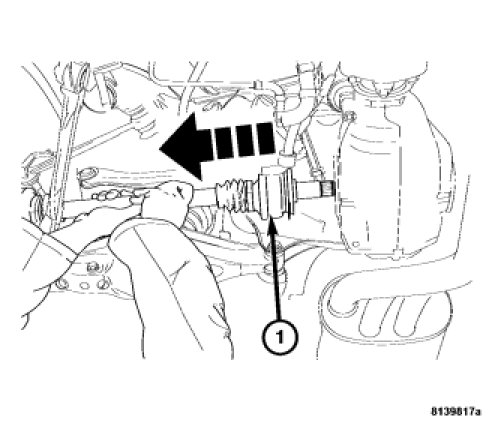

1. Remove the halfshaft (1).Half Shaft - Removal.




CAUTION: Do not scrape or damage the surface of the seal bore.

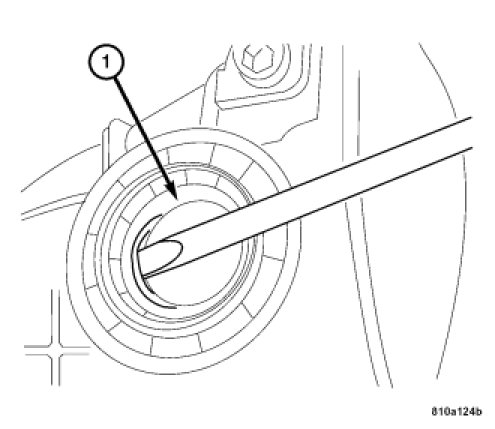

2. Remove the axle shaft seal (1) with a suitable prying tool.
