Installation

INSTALLATION





1. Lubricate the new axle shaft seal with hypoid gear oil.

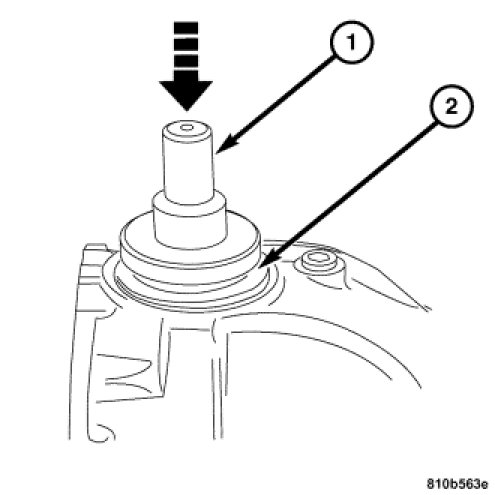

2. Using the Special Tool 9223 Drift (1), drive the new axle shaft seal (2) into the differential housing.




3. Install the halfshaft (1). Installation.
