NAG1 - Shift Mechanism - Removal

REMOVAL





1. Remove any necessary console parts for access to shift lever assembly and shifter cables. Center Console - Removal.
2. If necessary, remove the bolts holding the shield, covering the gearshift and park lock cables, to the floorpan and remove the shield.
3. Shift transmission into PARK.

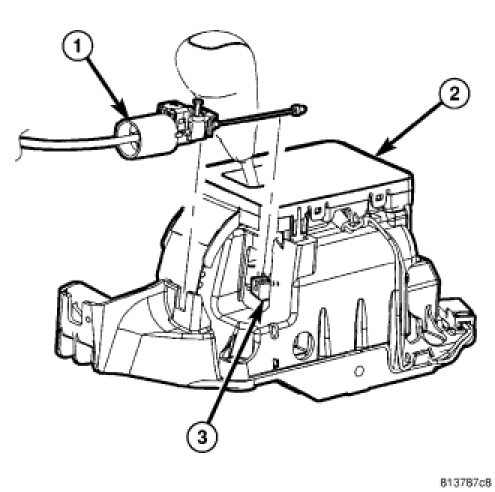

4. Disconnect the transmission shift cable (1) at shift lever (3) and shifter assembly bracket (2).
5. Remove the shift cable retainer (2) from the notch in the shifter assembly (2).




6. Verify the key is in the LOCK position and disconnect the park lock cable (1) from the shifter mechanism cam (3) and the notch in the shifter assembly (3).

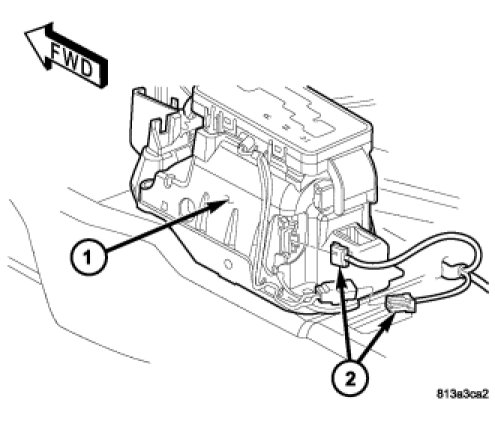

7. Disengage all wiring connectors (2) from the shifter assembly (1).

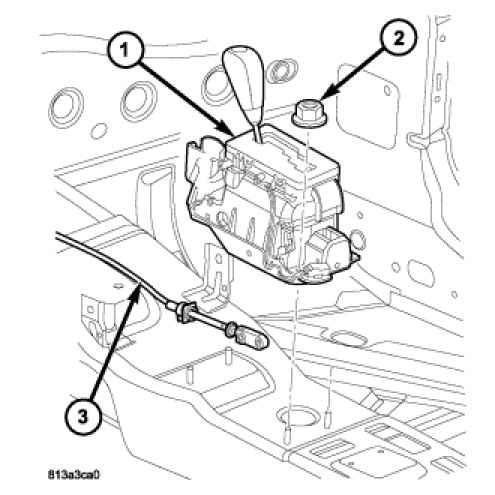

8. Remove all nuts (2) holding the shifter assembly (1) to the floor pan.
9. Remove the shifter assembly (1) from the vehicle.
