Description

DESCRIPTION





The Brake Transmission Shifter/Ignition Interlock (BTSI) is a cable operated system that prevents the transmission gear shifter from being moved out of PARK without the proper driver inputs. The system also contains a solenoid that is integral to the shifter assembly. The solenoid works in conjunction with the park lock cable to permit shifter movement out of PARK when the brake is depressed and prevents shifter movement into REVERSE unless a shift into REVERSE is permitted.

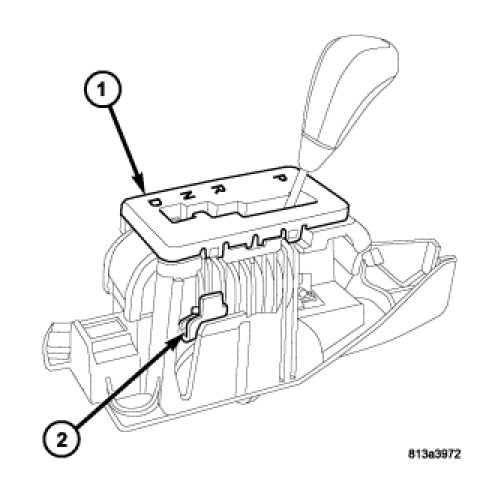

A BTSI override (2) is provided on the side of the shifter mechanism (1) to allow the vehicle to be shifted out of PARK in the event of an electrical failure.
