Removal

REMOVAL









1. Lift and support the vehicle.

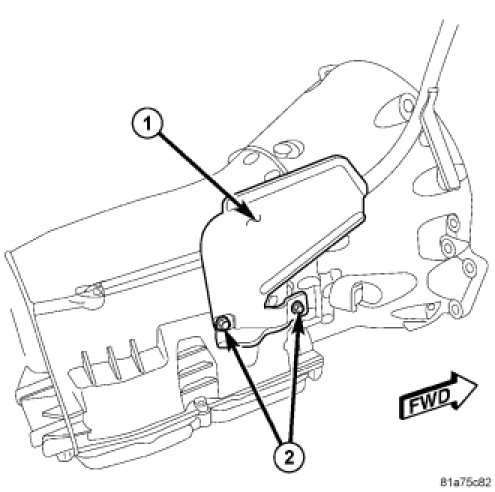

2. Remove water shield bolts and water shield (if equipped).

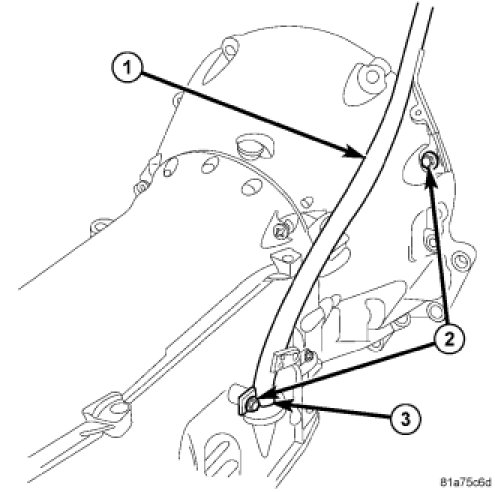

TYPICAL FILL TUBE BOLTS





3. Remove the transmission fill tube bolts (2).
4. Lift the transmission fill tube out of the transmission case.
5. Using a small pry tool remove the transmission fill tube seal.
