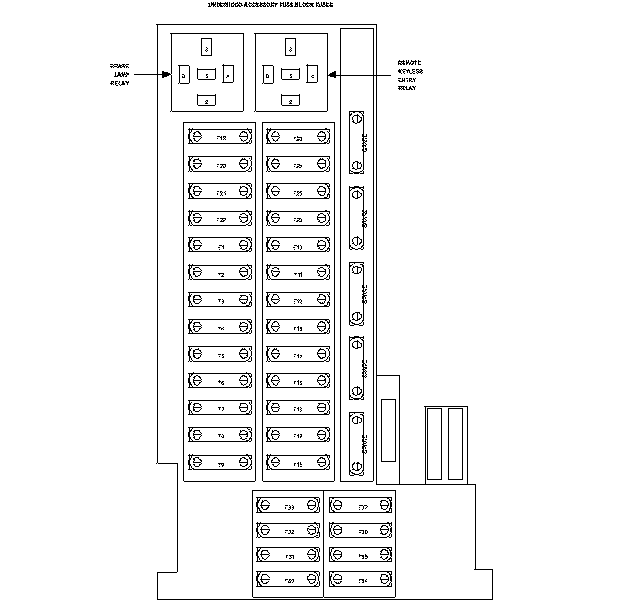

Underhood Accessory Fuse Block

Component ID: 349
Component : UNDERHOOD ACCESSORY FUSE BLOCK

Connector:
Name : UNDERHOOD ACCESSORY FUSE BLOCK FUSES
Color :
# of pins : 0




Pin Circuit Description
1 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
Pin Circuit Description
1 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
Pin Circuit Description
1 20RD/YL FUSED IGNITION SWITCH OUTPUT
Pin Circuit Description
1 20PK/YL/BK FUSED IGNITION SWITCH OUTPUT
2 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
3 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
3 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
4 18PK/RD/WT FUSED HEATED MIRROR SUPPLY
4 18PK/RD/WT FUSED HEATED MIRROR SUPPLY
5 14RD/YL FUSED B(+)
5 16PK/YL/DG FUSED IGNITION SWITCH OUTPUT
6 12RD/YL FUSED B(+)
6 18PK/RD/WT FUSED B(+)
7 20RD/YL FUSED B(+)
7 20PK/RD/WT FUSED B(+)
8 14RD/DG FUSED B(+)
9 20PK/RD FUSED IGNITION SWITCH OUTPUT
9 16RD/YL FUSED B(+)
9 16RD/GY FUSED B(+)
10 18BK/RD FUSED IGNITION SWITCH OUTPUT
11 16BK/YL FUSED IGNITION SWITCH OUTPUT
12 18PK/RD/WT FUSED IGNITION SWITCH OUTPUT
13 20RD/GY FUSED B(+)
13 16RD/GY FUSED B(+)
14 18RD/DG FUSED B(+)
15 18RD/YL FUSED B(+)
16 16RD/WT FUSED B(+)
17 12BK FUSED B(+)
18 12BK FUSED B(+)
19 12RD/YL FUSED B(+)
20 12PK/YL/DG FUSED IGNITION SWITCH OUTPUT
21 14RD/DG POWER SEAT RELAY OUTPUT
21 14RD/BK POWER SEAT RELAY OUTPUT
22 14RD/BK POWER SEAT RELAY OUTPUT
22 14RD/DG POWER SEAT RELAY OUTPUT
23 14RD/YL FUSED B(+)
24 14RD/YL FUSED B(+)
25 12RD/DG FUSED B(+)
26 16BK/YL/WT FUSED B(+)
27 - -
28 - -
29 - -
30 16PK/YL/DG FUSED IGNITION SWITCH OUTPUT
31 16BK/BL FUSED IGNITION SWITCH OUTPUT
32 16BK/YL/DG FUSED IGNITION SWITCH OUTPUT
33 20BK/DG FUSED IGNITION SWITCH OUTPUT
34 14RD FUSED B(+)
35 14RD/YL FUSED B(+)
36 18PK/RD/WT FUSED B(+)
36 14RD FUSED B(+)
37 18PK/RD/BL FUSED IGNITION SWITCH OUTPUT
37 18PK/RD/BK FUSED IGNITION SWITCH OUTPUT

Component Location - 2




Component Location - 1




Component Location - 6
