Installation

INSTALLATION

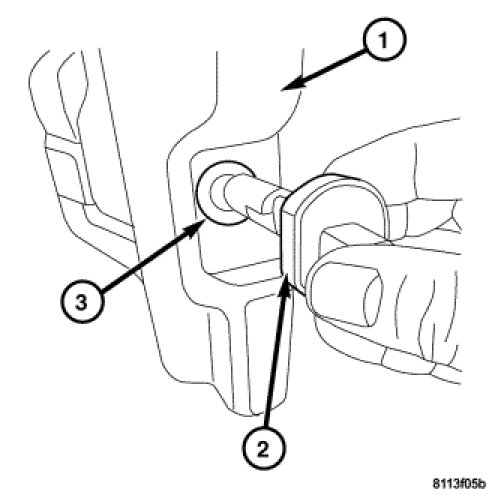

1. Insert the washer fluid level switch (2) into the rubber grommet (3) at the rear of the washer reservoir (1).
2. Press the washer fluid level switch inward until fully seated.
3. Install the washer reservoir. Washer Reservoir - Installation.
