Removal

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the shifter cover trim panel. Center Console - Removal.

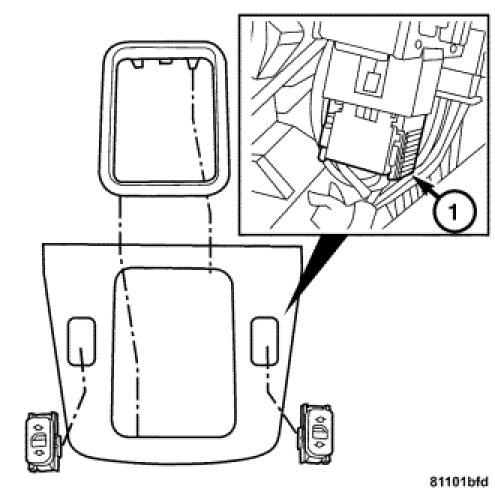

3. Disconnect the power window switch harness connector (1).
4. Squeeze the clips together and remove the power window switch from the shifter cover trim panel.
