Left Front Power Window Switch

Component ID: 179

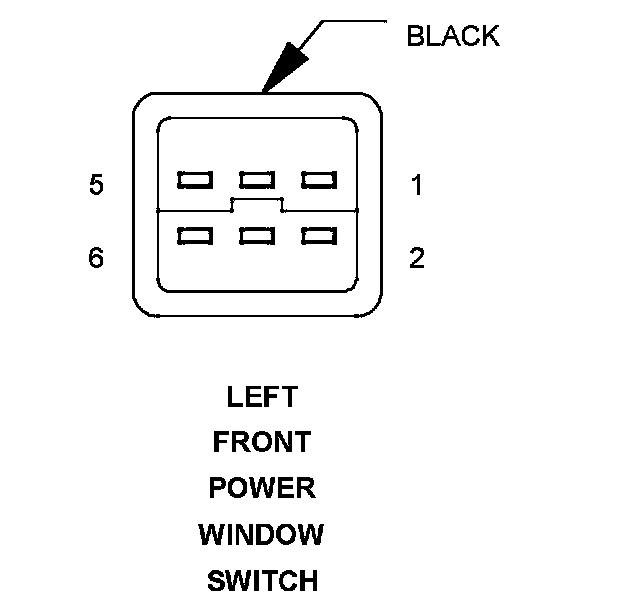

Component : LEFT FRONT POWER WINDOW SWITCH

Connector:
Name : LEFT FRONT POWER WINDOW SWITCH
Color : BLACK
# of pins : 6




Pin Circuit Description
1 20BR GROUND
2 20DG/YL LEFT POWER WINDOW SWITCH SENSE
3 - -
4 - -
5 20DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT
6 - -

Component Location - 12
