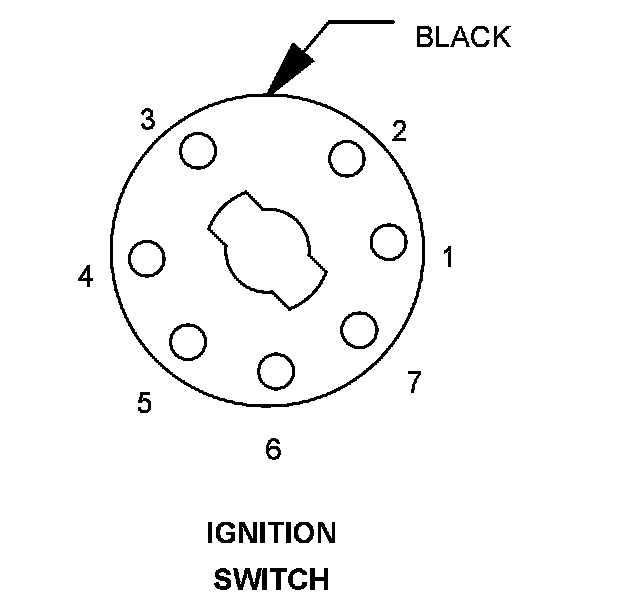

Connector Views

Component ID: 164
Component : IGNITION SWITCH

Connector:
Name : IGNITION SWITCH
Color : BLACK
# of pins : 7




Pin Circuit Description
1 12PK/RD FUSED IGNITION SWITCH OUTPUT
2 18DG/WT FUSED IGNITION SWITCH OUTPUT
3 12PK/YL FUSED IGNITION SWITCH OUTPUT
4 16VT FUSED IGNITION SWITCH OUTPUT
5 12RD FUSED B(+)
6 20PK/DG FUSED IGNITION SWITCH OUTPUT
7 12RD FUSED B(+)
