Heater Core Temperature Sensor / Switch: Diagrams

Component ID: 158

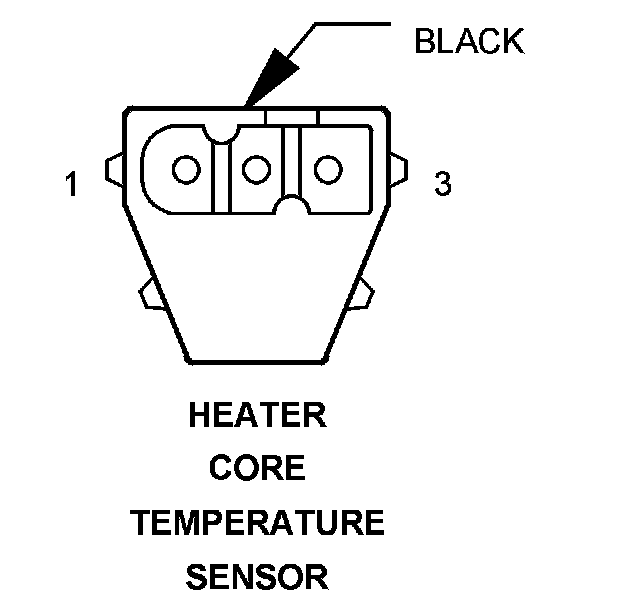

Component : HEATER CORE TEMPERATURE SENSOR

Connector:
Name : HEATER CORE TEMPERATURE SENSOR
Color : BLACK
# of pins : 3




Pin Circuit Description
1 22GY/DG RIGHT HEATER CORE TEMPERATURE SENSOR SIGNAL
2 20BR/YL SENSOR GROUND
3 22GY/PK LEFT HEATER CORE TEMPERATURE SENSOR SIGNAL
