Coolant Level Sensor: Diagrams

Component ID: 65
Component : COOLANT LEVEL SENSOR

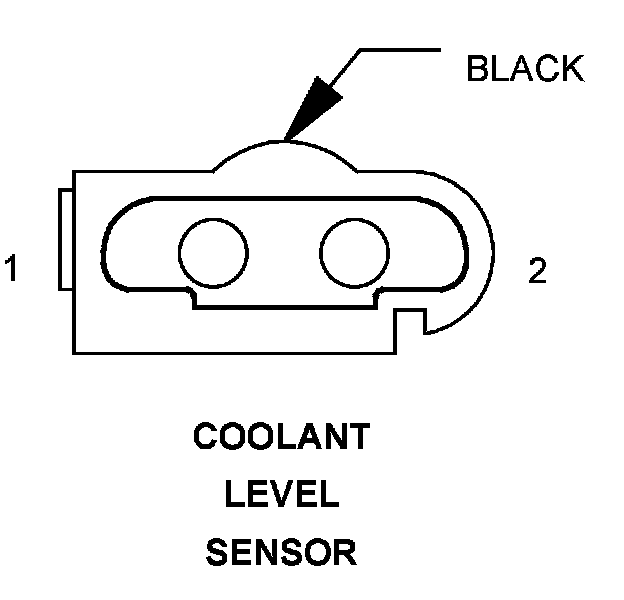

Connector:
Name : COOLANT LEVEL SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR/BL COOLANT/WASHER LEVEL COMBINATION
2 20BR/YL COOLANT/WASHER LEVEL SIGNAL
