Front Wheel Speed Sensor - Removal

REMOVAL

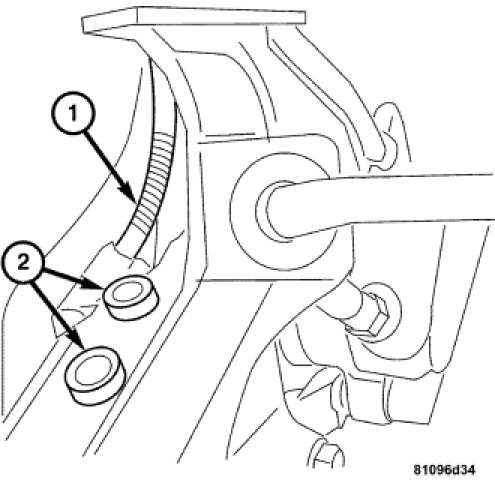

1. Remove the bolts (2) attaching the flange to the steering knuckle.
2. Remove the wheel speed sensor (1) from the steering knuckle.

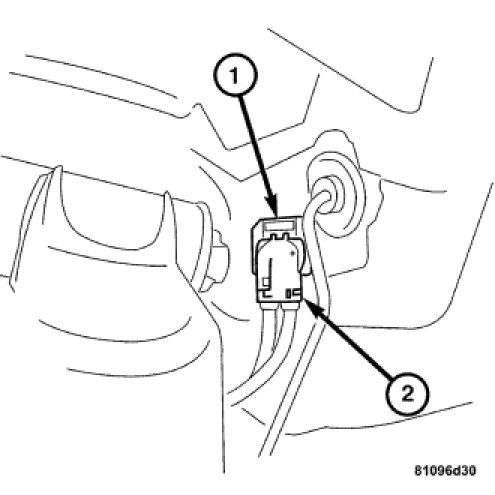

3. Disconnect the wheel speed / brake wear indicator wire harness connector (2) from the body mount connector (1).
