Right Rear Wheel Speed Sensor

Component ID: 269
Component : RIGHT REAR WHEEL SPEED SENSOR

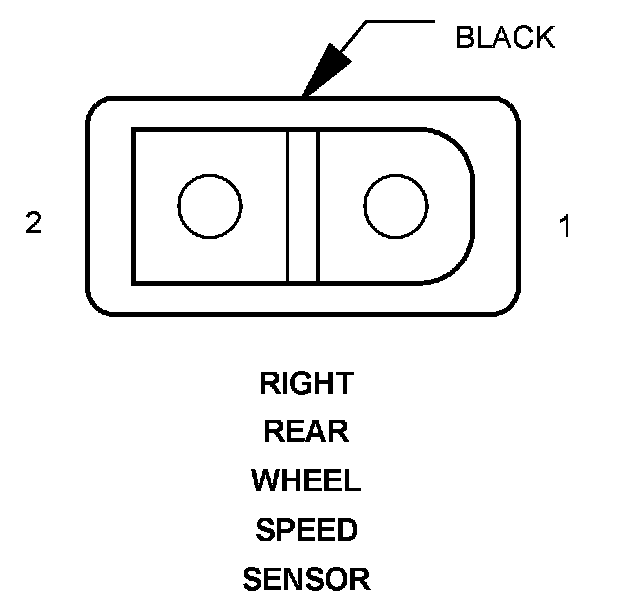

Connector:
Name : RIGHT REAR WHEEL SPEED SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20YL RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 20BR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
