Traction Control Switch: Locations

Component ID: 88

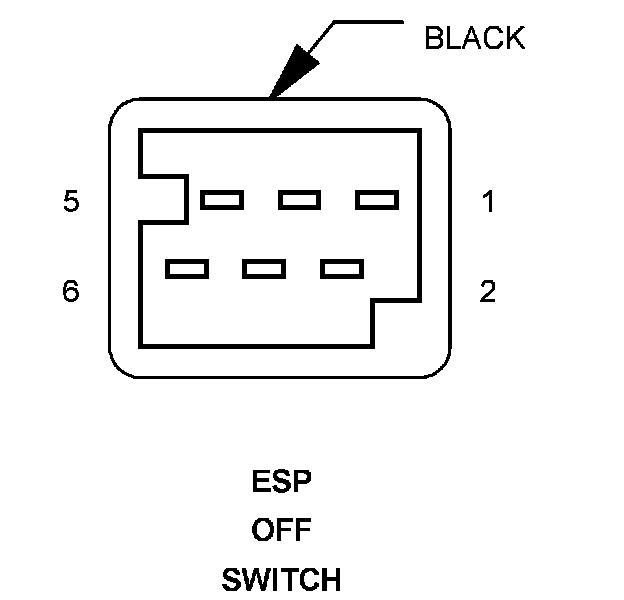

Component : ESP OFF SWITCH

Connector:
Name : ESP OFF SWITCH
Color : BLACK
# of pins : 6




Pin Circuit Description
1 - -
2 20BK/BL ESP OFF SWITCH SENSE
3 - -
4 - -
5 - -
6 - -

Component Location - 12
