Liftgate Lock Switch

Component ID: 202
Component : LIFTGATE LOCK SWITCH

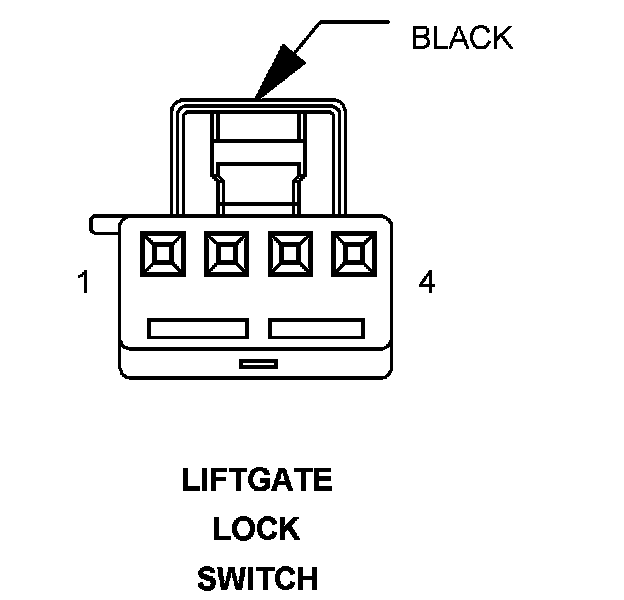

Connector:
Name : LIFTGATE LOCK SWITCH
Color : BLACK
# of pins : 4




Pin Circuit Description
1 20BR GROUND
2 20BR/BL LIFTGATE LOCK SWITCH SENSE (UNLOCK)
2 20BR/YL LIFTGATE LOCK SWITCH SENSE (UNLOCK)
3 - -
4 - -

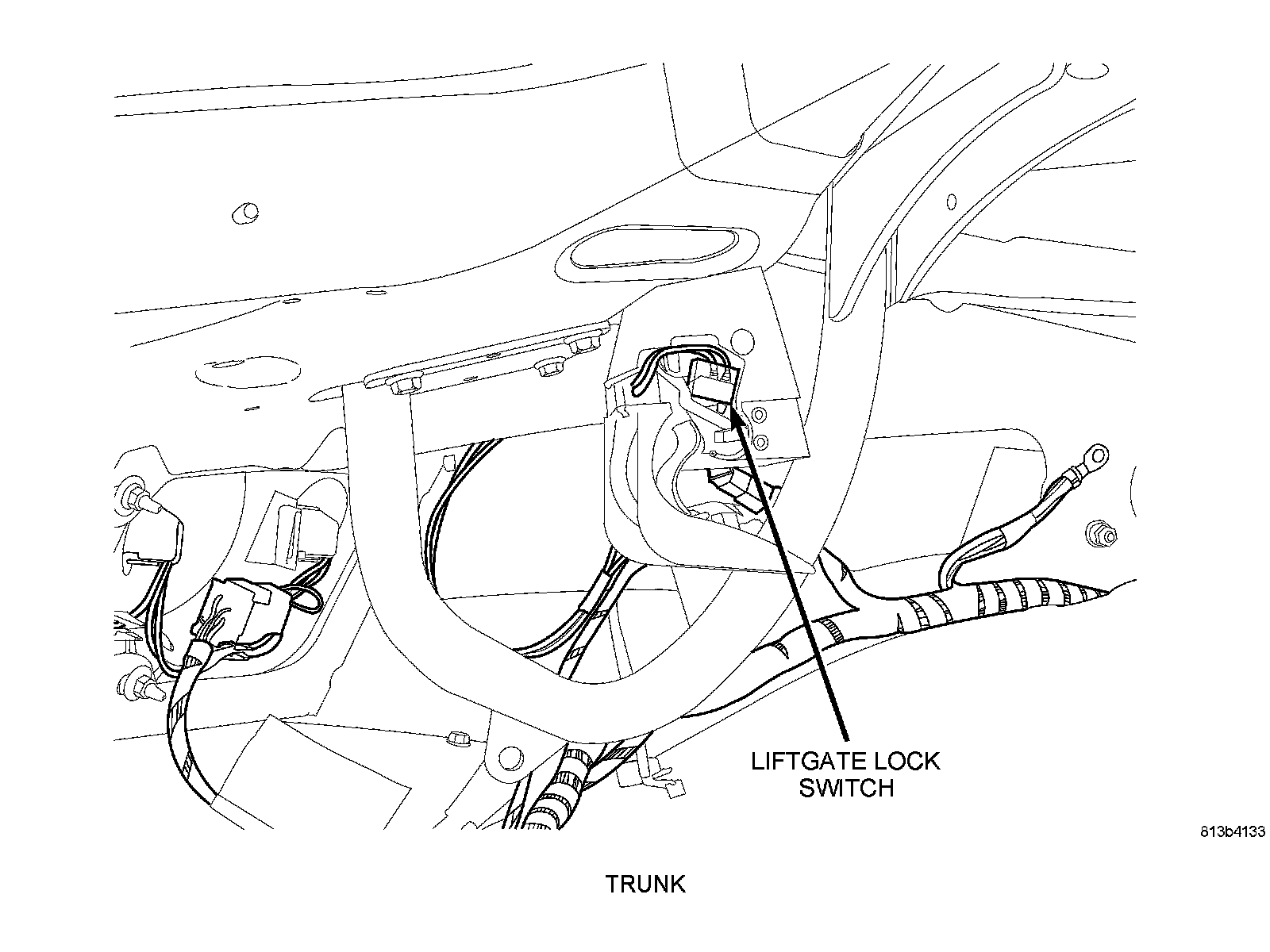

Component Location - 23
