Description







DESCRIPTION

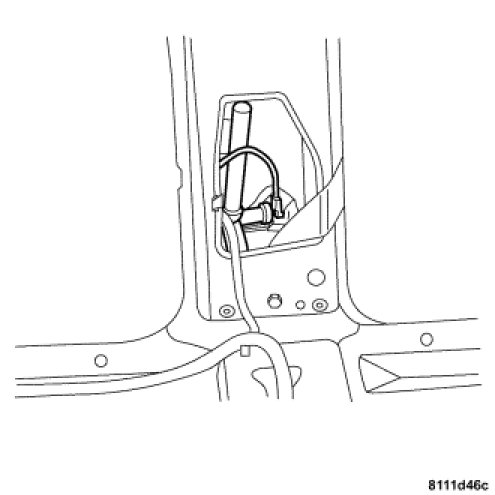

In the event of a collision (head-on or rear-end) the seat belt tensioner eliminates the slack in the belt and prevents the seat belt from unreeling. The tight seat belt causes the vehicle passengers to decelerate at the same rate as the body at an earlier point in time. The Seat Belt Tensioner (SBT) for the driver and passenger are located at the bottom of the B-pillar behind the plastic trim panel.
