Starter Relay: Locations

Component ID: 233
Component : PULSE MODULE

Connector:

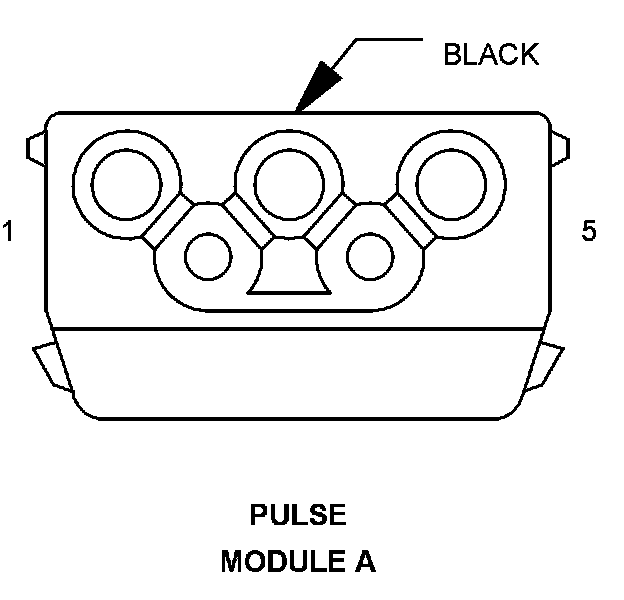

Name : PULSE MODULE A
Color : BLACK
# of pins : 5




Pin Circuit Description
1 12BK FUSED B(+)
2 20PK/RD SENSOR GROUND
3 - -
4 - -
5 12BR GROUND

Component Location - 2




Component Location - 3




Component Location - 1




Component Location - 6






Connector:

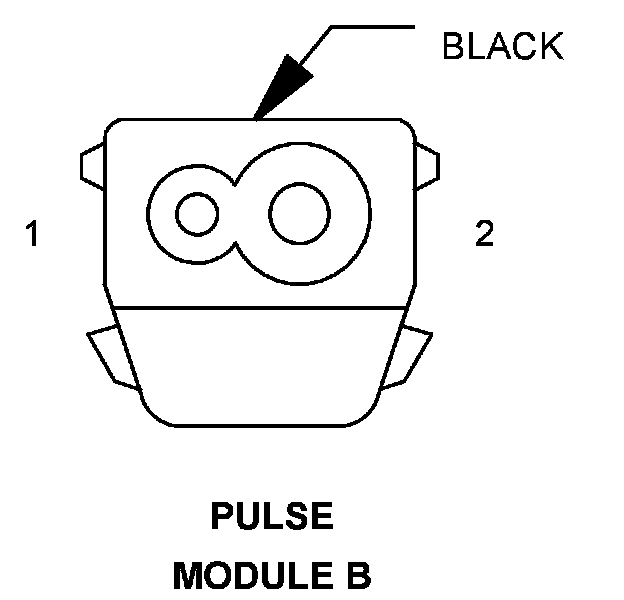

Name : PULSE MODULE B
Color : BLACK
# of pins : 2




Pin Circuit Description
1 16VT FUSED IGNITION SWITCH OUTPUT
Pin Circuit Description
1 20VT CLUTCH INTERLOCK SWITCH OUTPUT
2 14PK/RD FUSED IGNITION SWITCH OUTPUT

Component Location - 2




Component Location - 3




Component Location - 1




Component Location - 6






Connector:

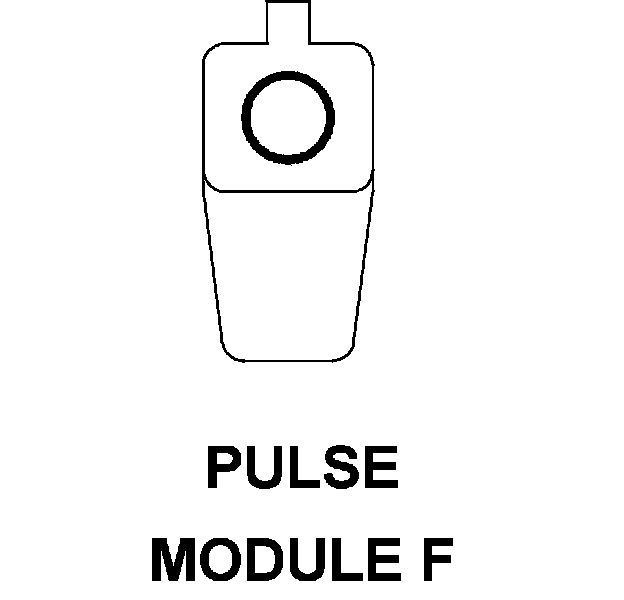

Name : PULSE MODULE F
Color :
# of pins : 1




Pin Circuit Description
1 14VT/WT STARTER SOLENOID OUTPUT

Component Location - 2




Component Location - 3




Component Location - 1




Component Location - 6
