Removal
Removal
REMOVAL
1.
Disconnect the negative battery cable.
2.
Remove the underhood accessory fuse block cover and relay cover panel.
3.

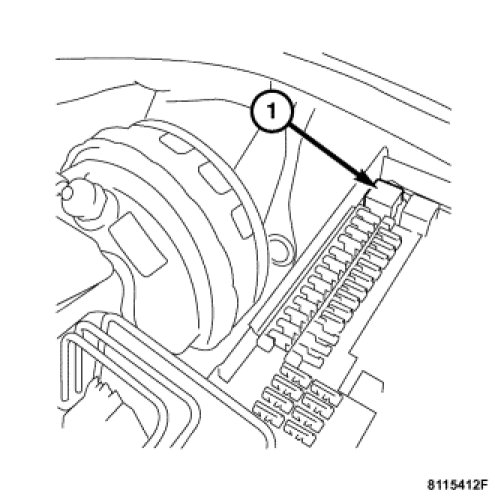

Pull upward on the
brake lamp relay
(1) and remove the relay from the underhood accessory fuse block.
