Power Seat Relay: Diagrams

Component ID: 227

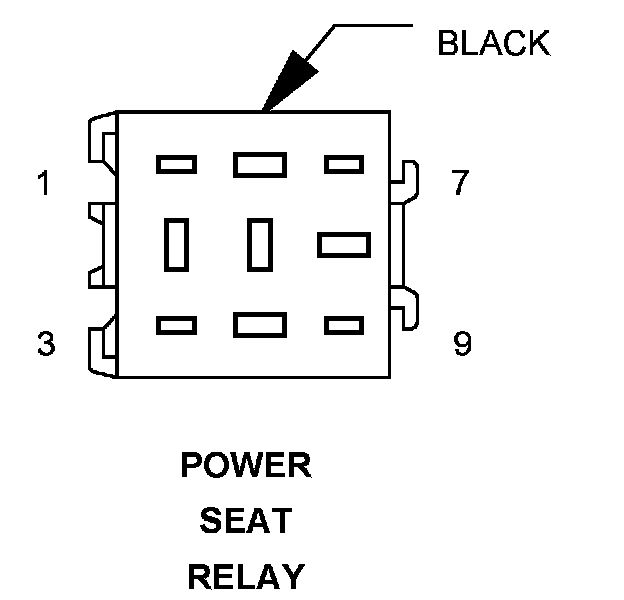

Component : POWER SEAT RELAY

Connector:
Name : POWER SEAT RELAY
Color : BLACK
# of pins : 9




Pin Circuit Description
1 20BR/GY LEFT DOOR AJAR SWITCH SENSE
2 14RD/WT POWER SEAT RELAY SWITCHED OUTPUT
3 18RD FUSED B(+)
4 18PK/YL FUSED IGNITION SWITCH OUTPUT
5 - -
6 18BR GROUND
7 20BR/PK RIGHT DOOR AJAR SWITCH SENSE
8 14RD FUSED B(+)
9 - -
