Removal







REMOVAL





1. Disconnect the negative battery cable.
2. Remove the liftgate interior trim panel. Service and Repair.
3. Disconnect the antenna module harness connectors.

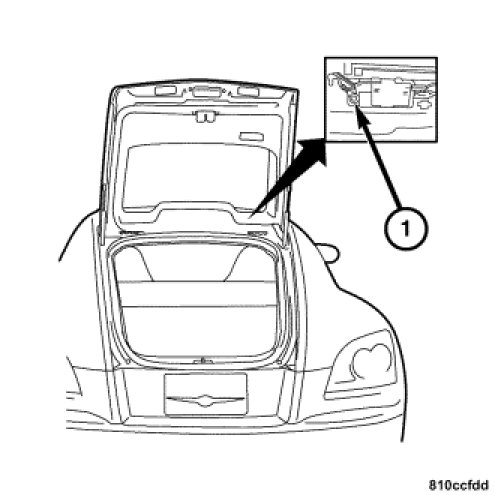

4. Remove the retaining screw (1) and remove the antenna module from the vehicle.
