Shift Interlock Solenoid: Adjustments

ADJUSTMENTS - SHIFT INTERLOCK SOLENOID





1. Set the parking brake.
2. Remove the front center console. Center Console - Removal.
3. Remove the shifter outer cover.

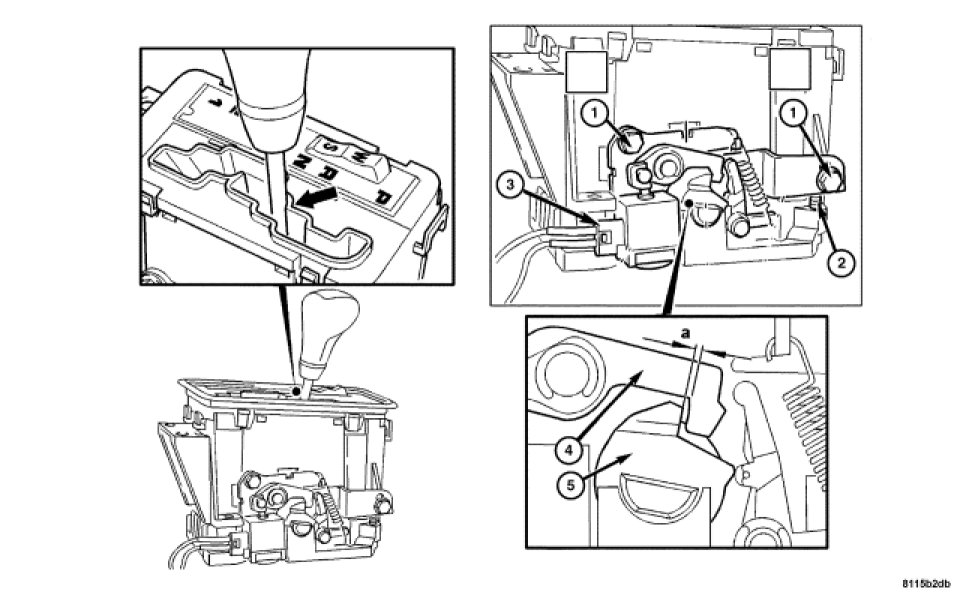

4. Set the selector lever to neutral. Lever must be touching the slot (arrow).
5. Energize the interlock solenoid (3).
6. Loosen the bolts (1).
7. Adjust the gap between the locking lever (4) and the cam plate (5) to.02 mm using the adjusting screw (2).
8. Tighten the bolts (1) to 3.5 Nm (31 in. lbs.).
9. Install the shifter outer cover.
10. Install the console. Center Console - Installation.
