Oxygen Sensor 2/2 Downstream

Component ID: 213

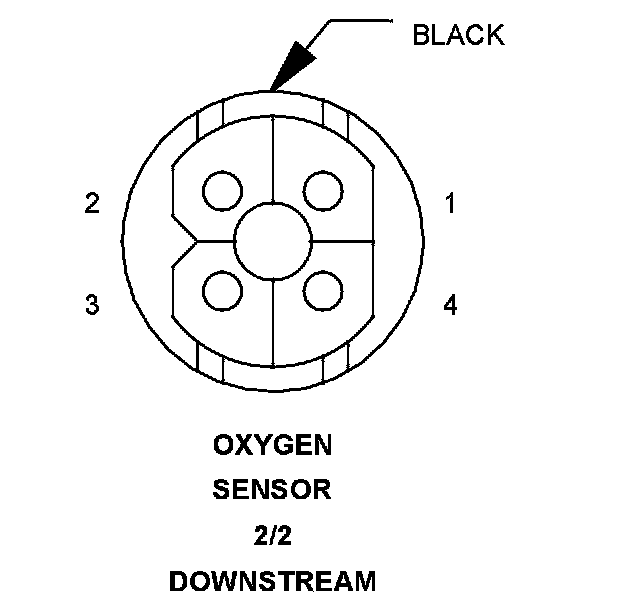

Component : OXYGEN SENSOR 2/2 DOWNSTREAM

Connector:
Name : OXYGEN SENSOR 2/2 DOWNSTREAM
Color : BLACK
# of pins : 4




Pin Circuit Description
1 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
2 18BR/DG OXYGEN SENSOR 2/2 HEATER CONTROL
3 20BR SENSOR GROUND
4 20YL/DG OXYGEN SENSOR 2/2 SIGNAL
