Fuel Injector No. 6

Component ID: 98
Component : FUEL INJECTOR NO. 6

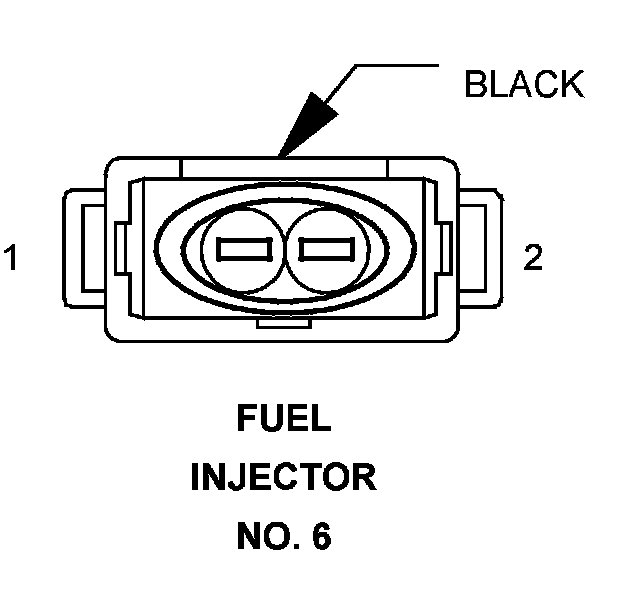

Connector:
Name : FUEL INJECTOR NO. 6
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18GY/VT FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/VT FUEL INJECTOR NO. 6 CONTROL

Component Location - 7
