Fuel Injector No. 4

Component ID: 96

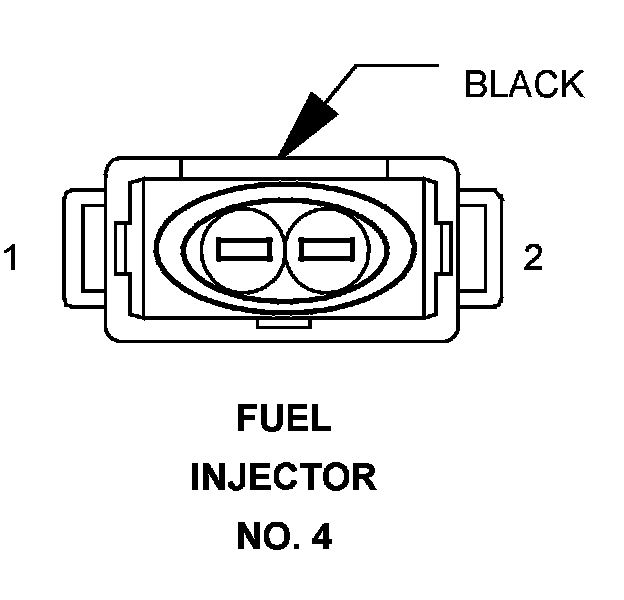

Component : FUEL INJECTOR NO. 4

Connector:
Name : FUEL INJECTOR NO. 4
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18GY/BL FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/BL FUEL INJECTOR NO. 4 CONTROL

Component Location - 7
