Fuel Injector No. 3
Component ID: 95

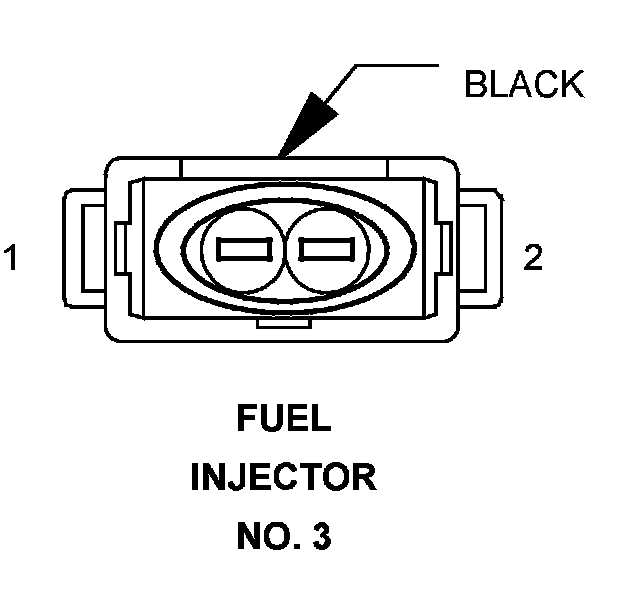

Component : FUEL INJECTOR NO. 3
Connector:
Name : FUEL INJECTOR NO. 3
Color : BLACK
# of pins : 2
Pin Circuit Description
1 18GY/DG FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/DG FUEL INJECTOR NO. 3 CONTROL
Component ID: 95
Component : FUEL INJECTOR NO. 3
Connector:
Name : FUEL INJECTOR NO. 3
Color : BLACK
# of pins : 2
Pin Circuit Description
1 18GY/DG FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/DG FUEL INJECTOR NO. 3 CONTROL
