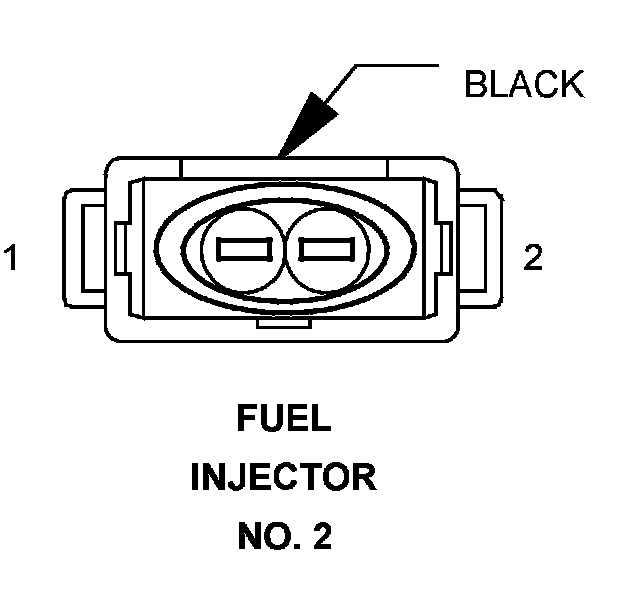

Fuel Injector No. 2
Component ID: 94
Component : FUEL INJECTOR NO. 2
Connector:
Name : FUEL INJECTOR NO. 2
Color : BLACK
# of pins : 2
Pin Circuit Description
1 18GY/RD FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/RD FUEL INJECTOR NO. 2 CONTROL
Component ID: 94
Component : FUEL INJECTOR NO. 2
Connector:
Name : FUEL INJECTOR NO. 2
Color : BLACK
# of pins : 2
Pin Circuit Description
1 18GY/RD FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/RD FUEL INJECTOR NO. 2 CONTROL
