Fuel Injector No. 1

Component ID: 93

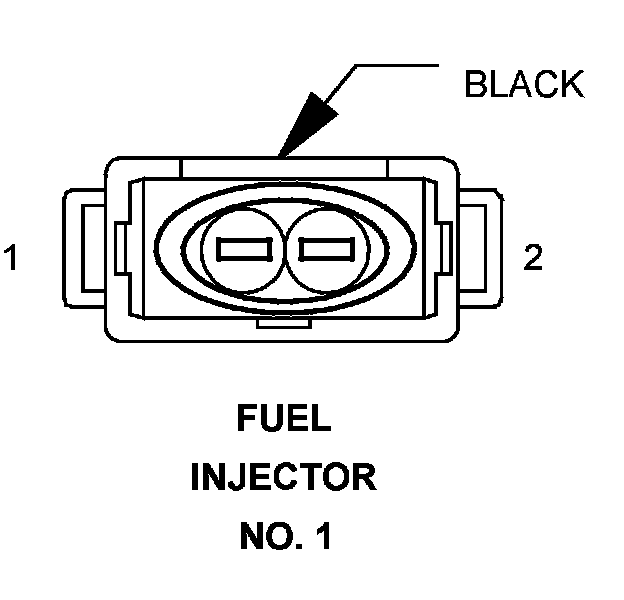

Component : FUEL INJECTOR NO. 1

Connector:
Name : FUEL INJECTOR NO. 1
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18GY/BK FUSED ENGINE CONTROL RELAY OUTPUT
2 18GY/BK FUEL INJECTOR NO. 1 CONTROL
