Accelerator Pedal: Description and Operation
DESCRIPTION

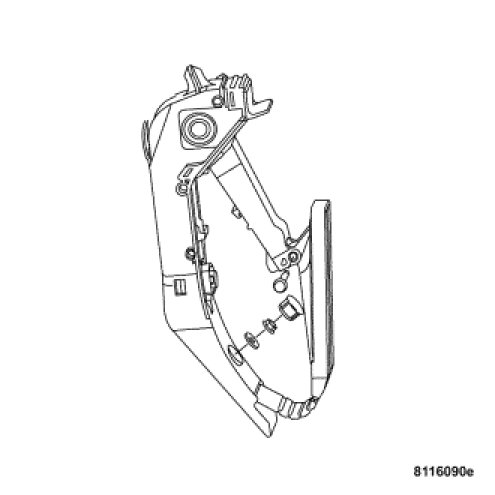

The
Accelerator Pedal
is integrated with the
Accelerator Pedal Position Sensor
. The Accelerator Pedal Position Sensor, and the Accelerator Pedal are serviced as an assembly.
