EGR Tube - Installation

INSTALLATION

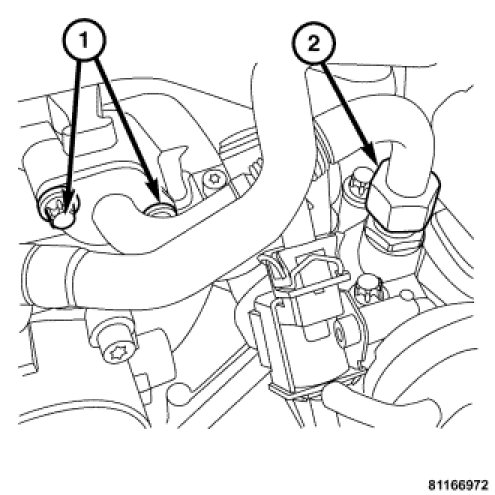

1. Loosely install the EGR tube flange nut (2) to the EGR valve.
2. Position the new gasket between tube and intake manifold.
3. Install the tube bolts (1) to intake manifold. Tighten to 31 Nm (23 ft. lbs.).
4. Tighten the EGR tube flange nut (2) to 11 Nm (95 in. lbs.).
5. Install the air cleaner housing.
