Air Injection Pump: Locations

Component ID: 5

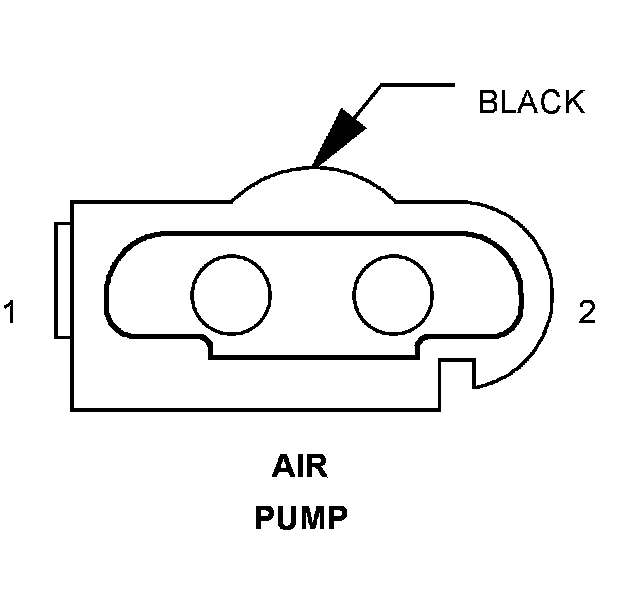

Component : AIR PUMP

Connector:
Name : AIR PUMP
Color : BLACK
# of pins : 2




Pin Circuit Description
1 12RD/WT AIR PUMP RELAY OUTPUT
2 14BR GROUND

Component Location - 8
