Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.

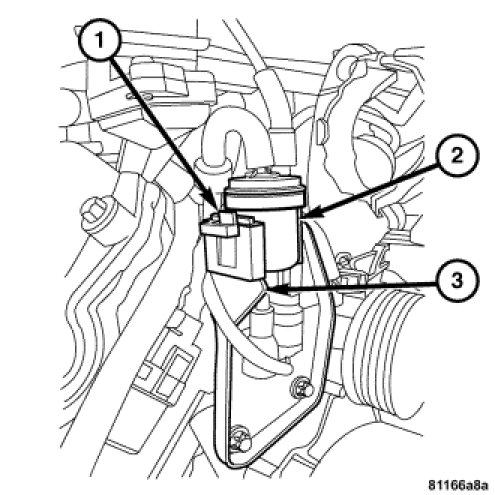

3. Disconnect the air pump switchover solenoid harness connector (2).

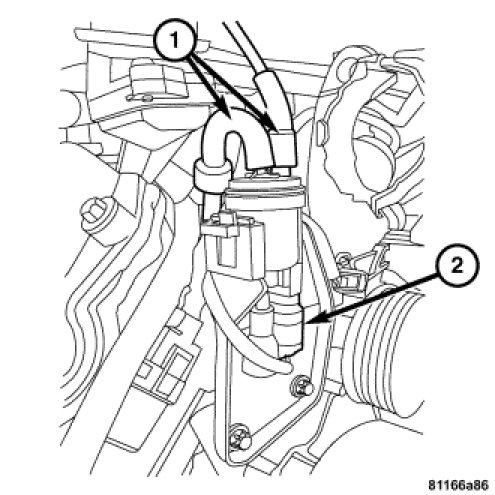

4. Disconnect the vacuum lines (1).




5. Pull the air pump switchover solenoid locking tab (1) away from air pump switchover solenoid (2).
6. Remove the air pump switchover solenoid (2) from air pump switchover solenoid retaining bracket (3).
