Maintenance Required Lamp/Indicator: Service and Repair

RESETTING THE FSS MAINTENANCE INDICATOR

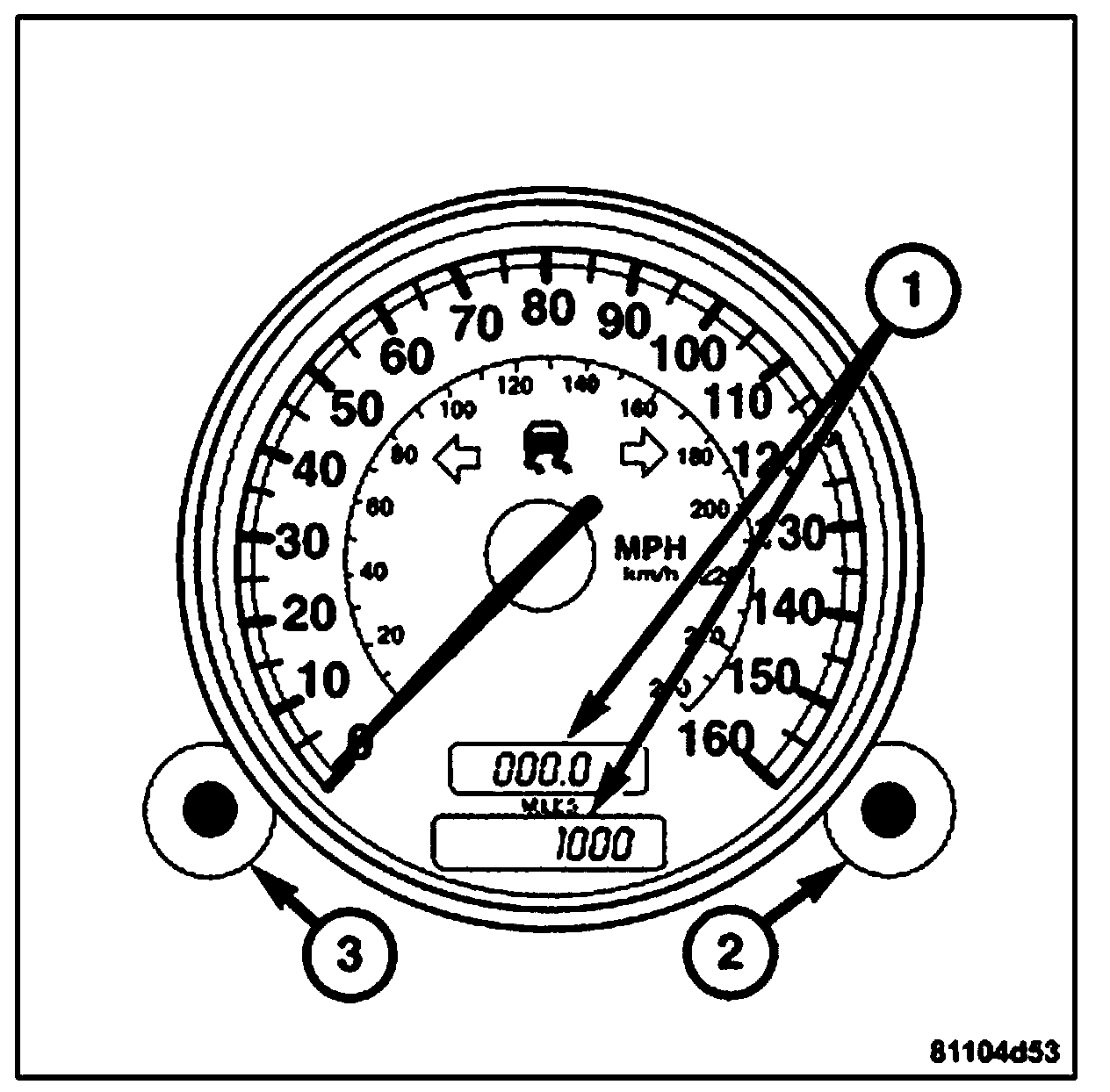

The FSS maintenance indicator can be reset to the total mileage (1) or total time in two ways:






1. Automatically when the odometer (1) is reset to 0 within the first 155 miles. (The FSS maintenance indicator is reset to the values set at the factory).

2. Manually by the driver.

Perform the following to manually reset the FSS maintenance indicator:

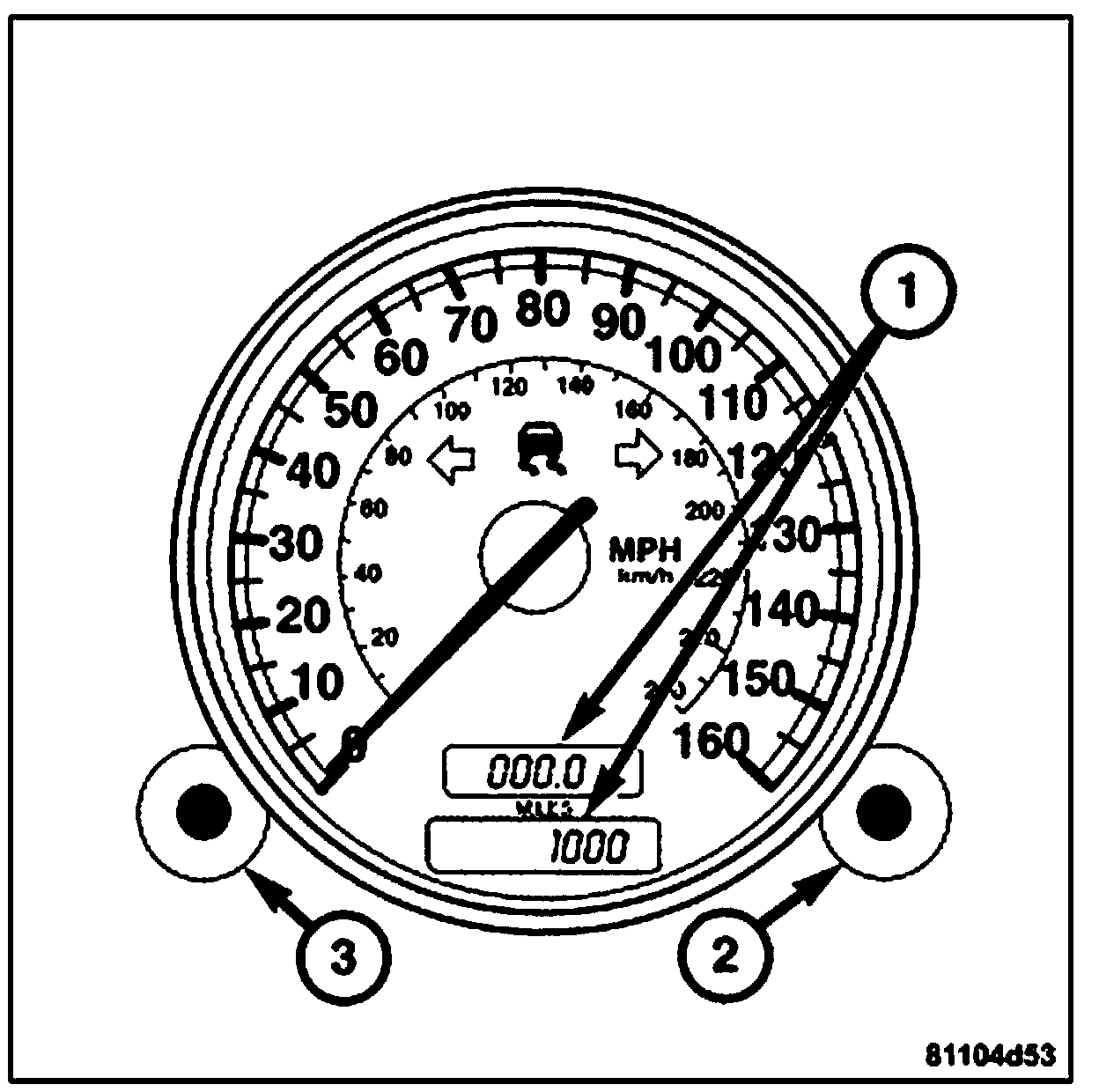

1. Hold the left control dial (3) depressed.

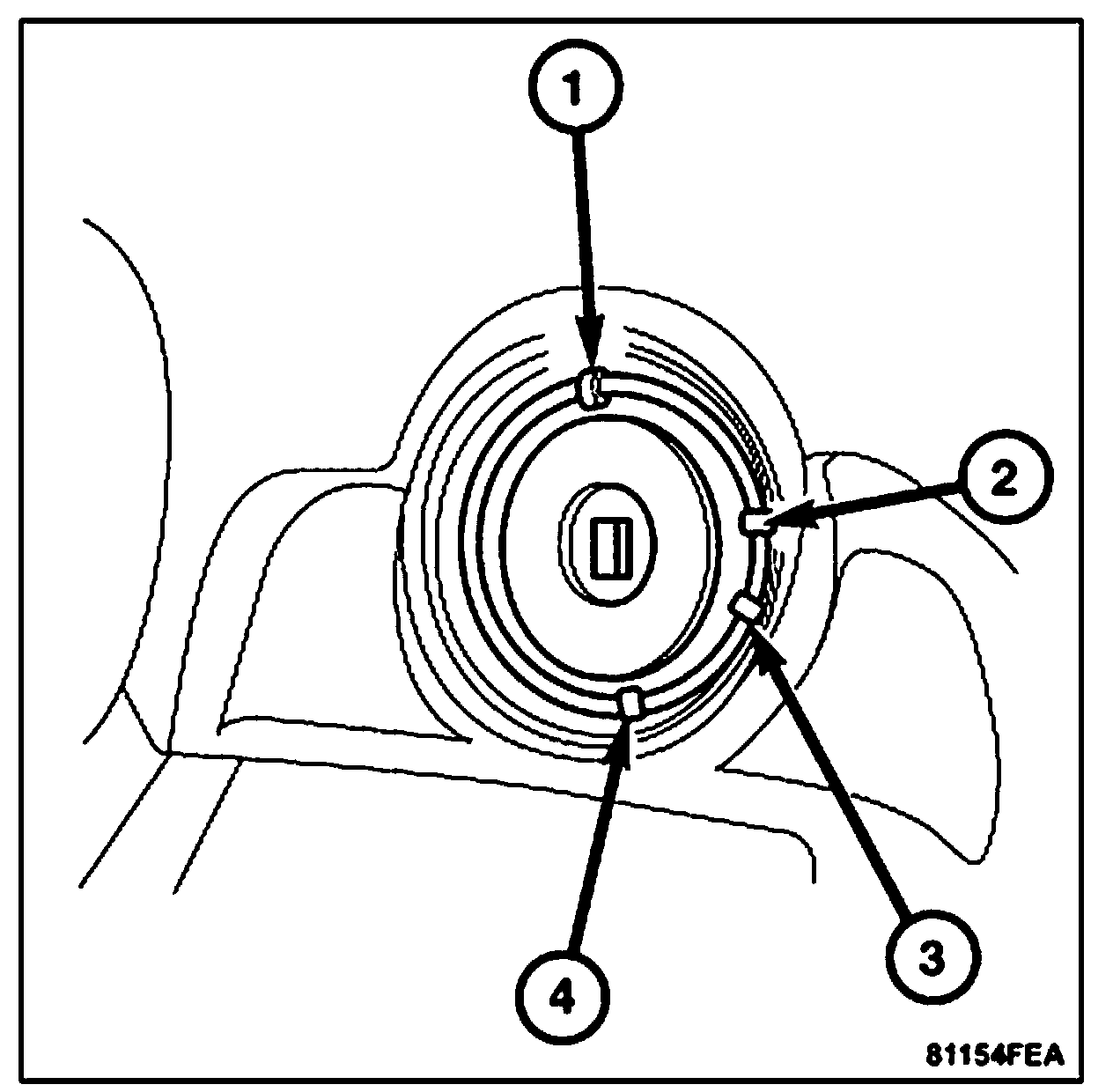

2. Simultaneously move the ignition switch to the RUN position (3).

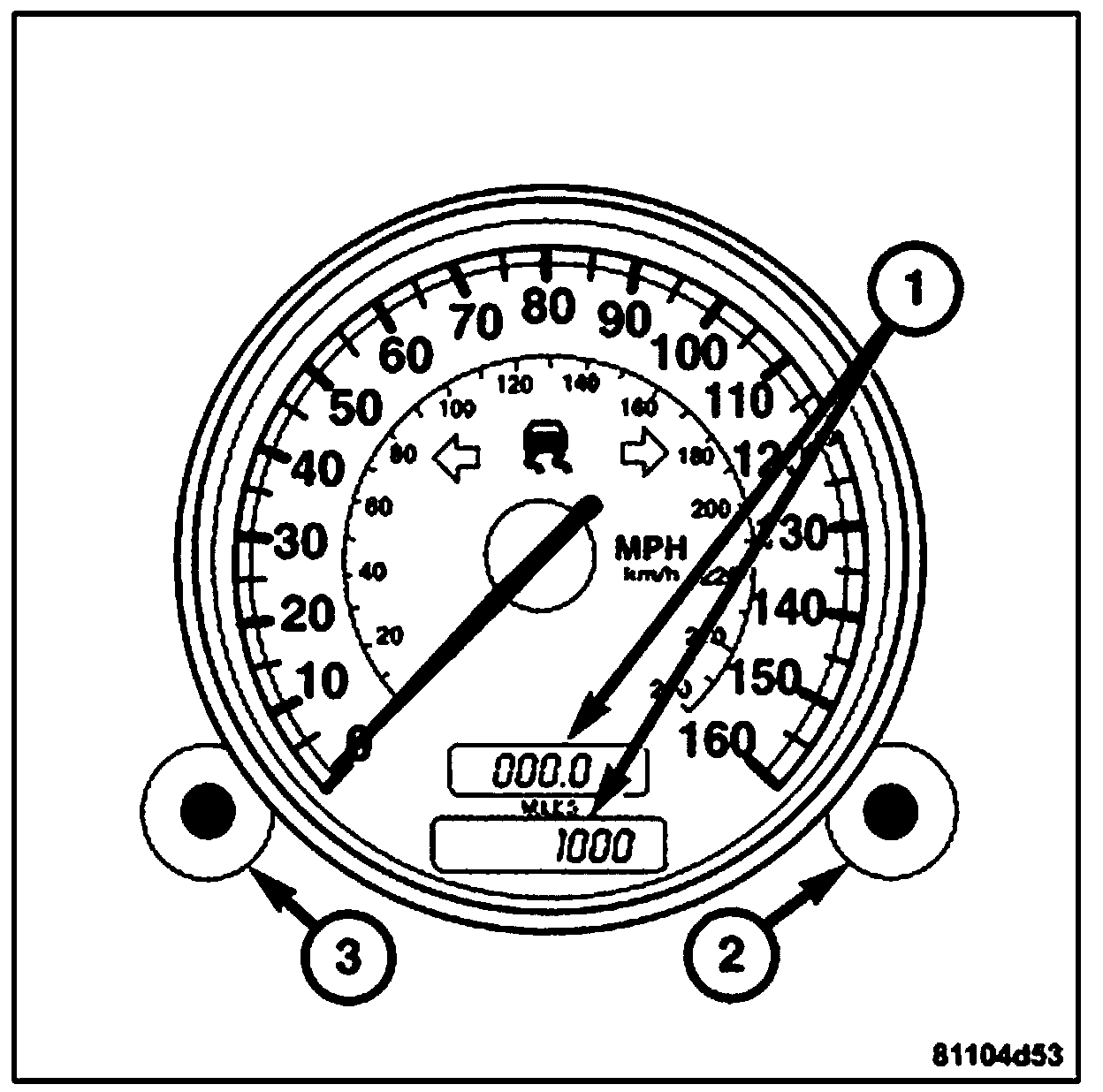

3. Continue to hold the control dial (3) down for 10 seconds. After the audible tone, 15,000 km (7,500 miles) appears on the display. The remaining mileage (1) is displayed again.


RESETTING THE FSS MAINTENANCE INDICATOR AFTER AN OIL CHANGE

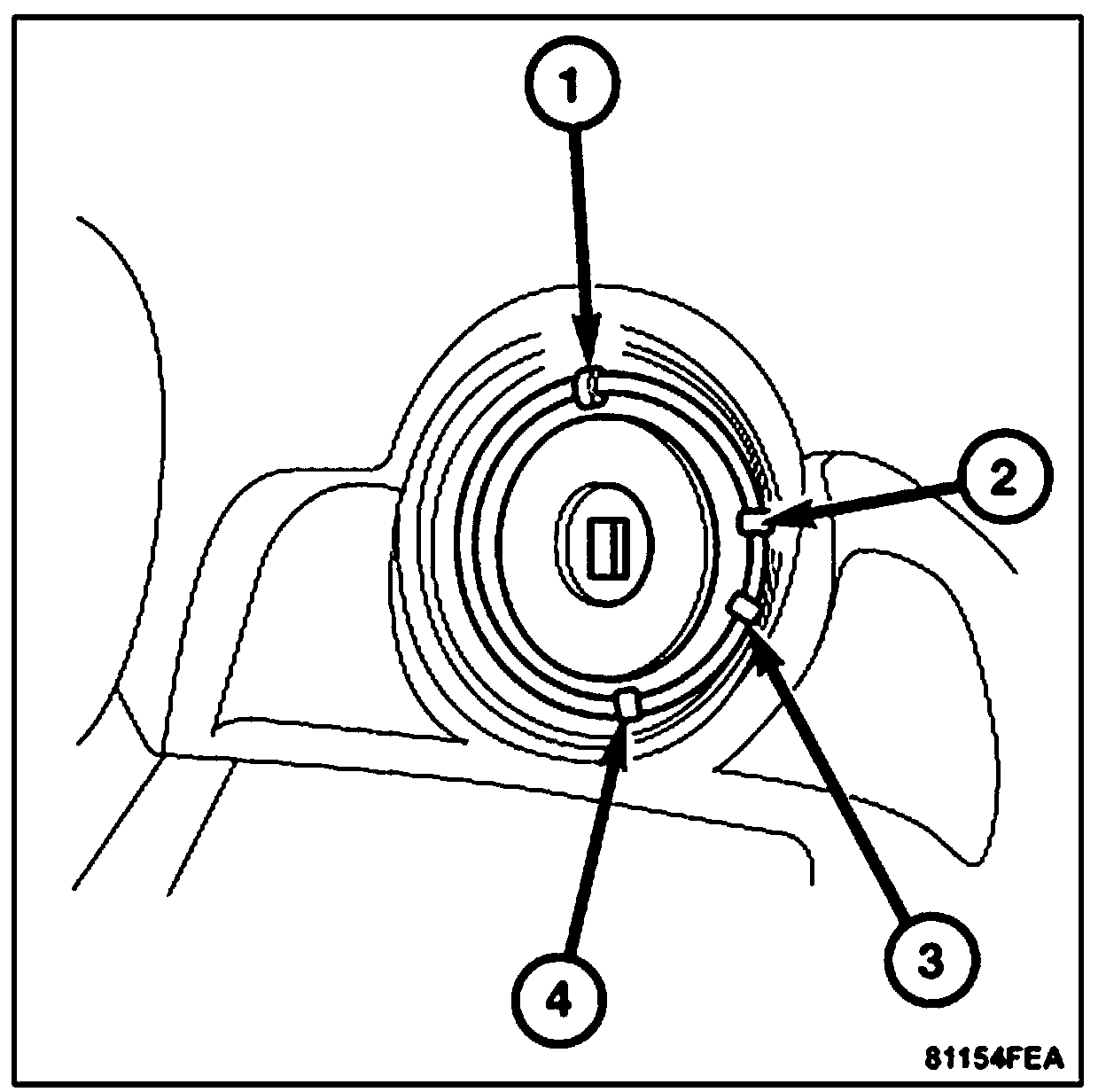

1. Move the ignition switch to the RUN position (3).






2. Within 4 seconds of moving the ignition switch into the RUN position, press the reset button for the trip odometer (3) twice within one second. The display for the FSS service request (1) is activated for 10 seconds.






3. During the 10 seconds the FSS service request is displayed, move the ignition switch to the OFF position (1). The FSS service request will continue to be displayed.






4. Press the reset button (3) for the trip odometer (1) and hold.






5. Move the ignition switch to the RUN position (3).

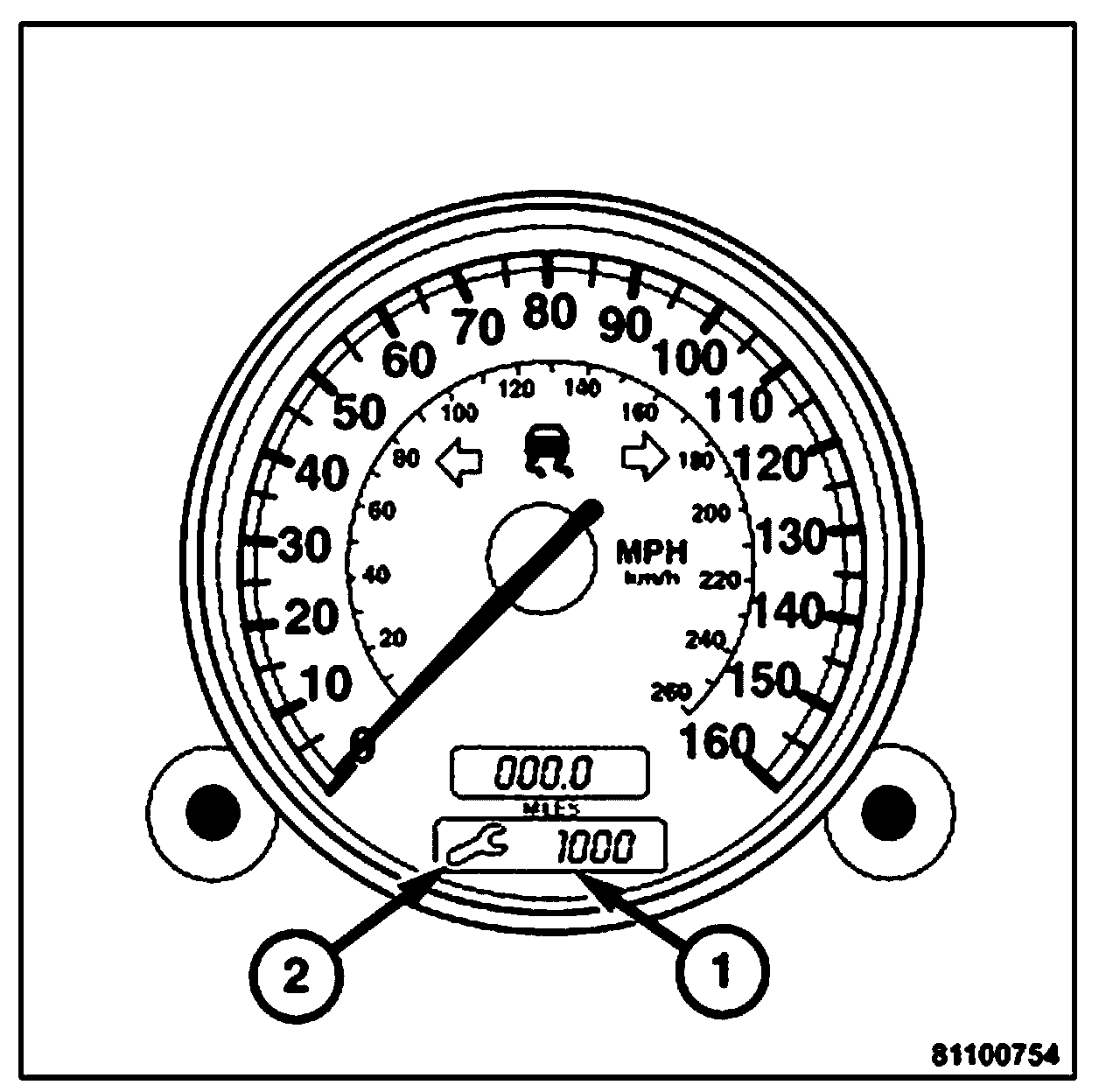

6. Continue to press and hold the reset button for the trip odometer (about 10 seconds) until the audible signal sounds and the new start distance appears (1) in the display.

7. The tool symbol (2) should disappear at this time.
