Tail Lamp Unit - Installation

TURN SIGNAL LAMP

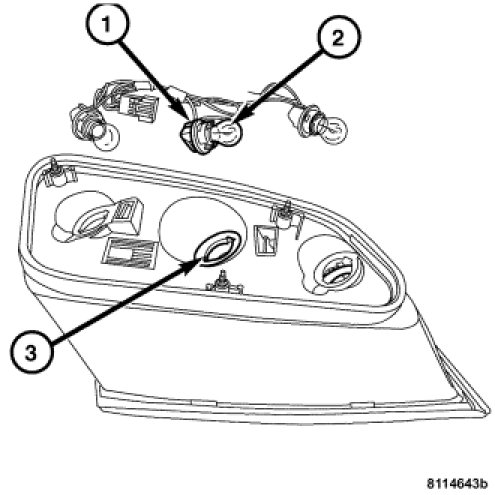

1. Install the bulb (2) into the turn signal lamp socket (1).
2. Insert the turn signal lamp socket (1) into the tail lamp unit (3) and rotate clockwise to lock.
3. Install the access panel into the cargo area interior trim panel.
4. Connect the negative battery cable.
