Removal







REMOVAL





1. Disconnect the negative battery cable.
2. Remove the headlamp unit. Headlamp Unit - Removal.

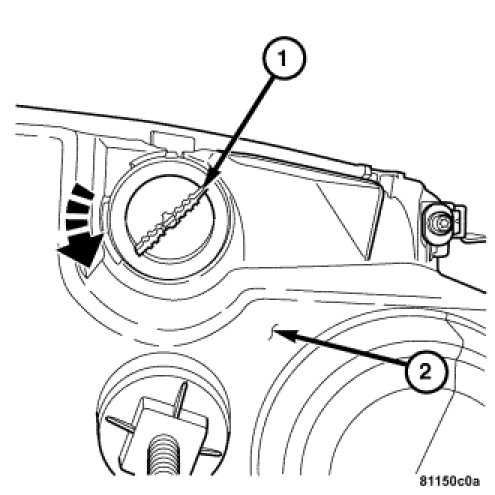

3. Rotate the turn signal bulb housing (1) counterclockwise and remove from the headlamp unit (2).
4. Remove the bulb from the bulb housing.
