Home >> Chrysler >> 2008 >> Crossfire V6-3.2L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Service and Repair >> Front Turn Signal Lamp >> Installation

Installation







INSTALLATION

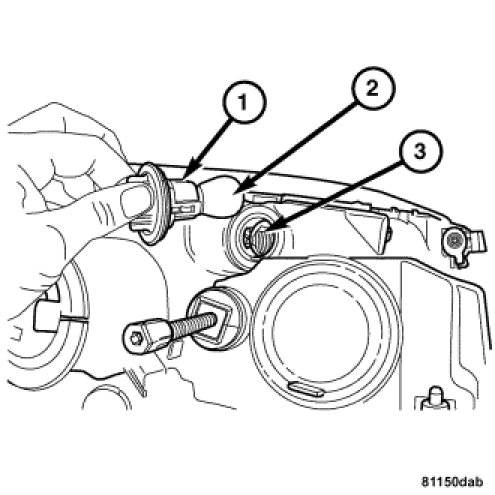

1. Insert the turn signal bulb (2) into the bulb housing (1) and install into the headlamp unit (3) by rotating clockwise.
2. Install the headlamp unit. Headlamp Unit - Installation.
3. Connect the negative battery cable.
