Left Rear Lamp Assembly

Component ID: 190
Component : LEFT REAR LAMP ASSEMBLY

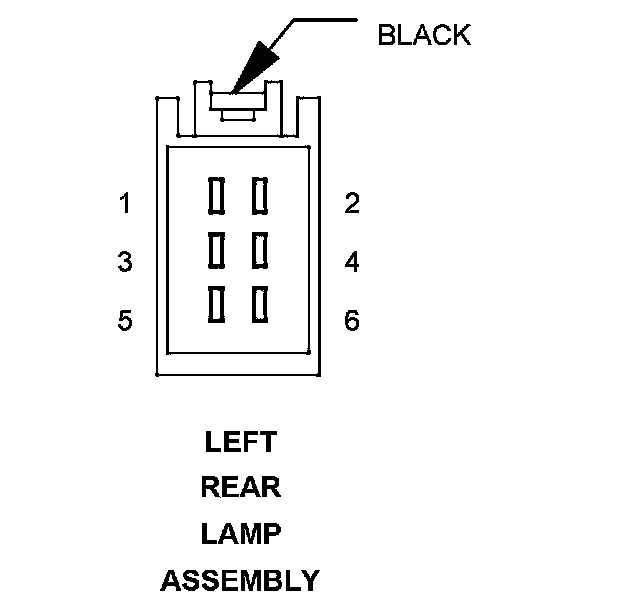

Connector:
Name : LEFT REAR LAMP ASSEMBLY
Color : BLACK
# of pins : 6




Pin Circuit Description
1 18BR GROUND
2 18GY/BK LEFT STANDING/PARK LAMPS OUTPUT
2 18GY/BK LEFT TAIL LAMP OUTPUT
3 18BK/WT LEFT TURN SIGNAL OUTPUT
4 18BK/RD BRAKE LAMP RELAY OUTPUT
5 18GY/YL BACKUP LAMP SWITCH OUTPUT
6 18GY/DG REAR FOG LAMPS SWITCH OUTPUT
