Tail Lamp Unit - Removal
TAIL LAMP UNIT
1. Disconnect the negative battery cable.
2. Remove the access panel from the cargo area interior trim panel.

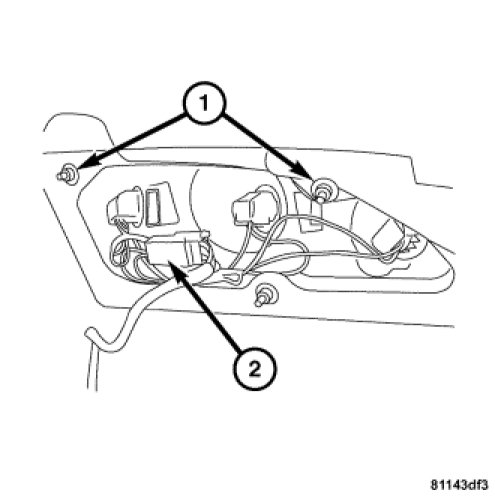

3. Disconnect the tail lamp unit harness connector (2), and remove the retaining nuts (1).
TAIL LAMP UNIT
1. Disconnect the negative battery cable.
2. Remove the access panel from the cargo area interior trim panel.
3. Disconnect the tail lamp unit harness connector (2), and remove the retaining nuts (1).
