Combination Switch: Diagrams

Component ID: 205
Component : MULTI-FUNCTION SWITCH

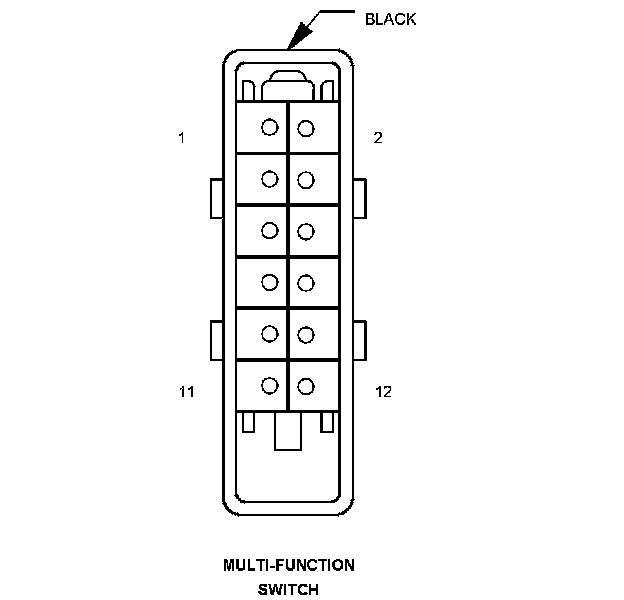

Connector:
Name : MULTI-FUNCTION SWITCH
Color : BLACK
# of pins : 12




Pin Circuit Description
1 16WT/YL HEADLAMP SUPPLY
2 16WT HEADLAMP HIGH BEAM SUPPLY
3 - -
4 18BK/BL TURN SIGNAL MONITORED GROUND
5 - -
6 - -
7 18BL WIPER SWITCH MUX
8 18GY WASHER PUMP MOTOR CONTROL
8 16GY WASHER PUMP MOTOR CONTROL
9 18BK/DG RIGHT TURN SIGNAL OUTPUT
10 18BK/WT LEFT TURN SIGNAL OUTPUT
11 16BK/YL/DG FUSED IGNITION SWITCH OUTPUT
12 - -
