Backup Lamp Switch: Locations

Component ID: 13
Component : BACKUP LAMP SWITCH

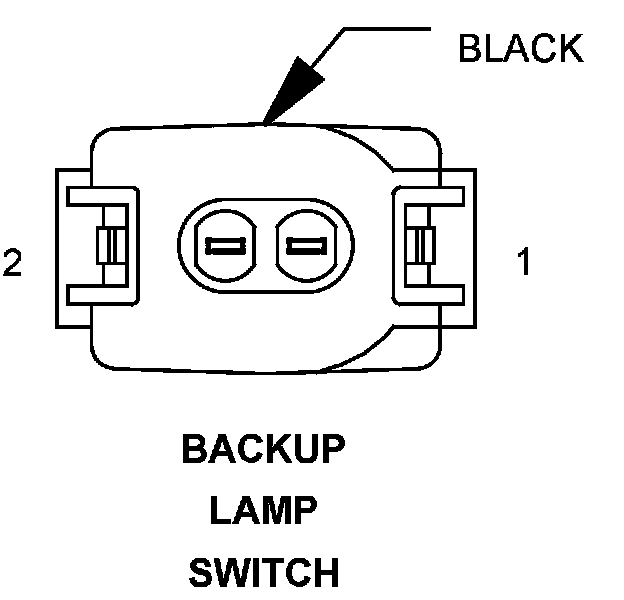

Connector:
Name : BACKUP LAMP SWITCH
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20PK/RD FUSED IGNITION SWITCH OUTPUT
2 20GY/YL BACKUP LAMP SWITCH OUTPUT

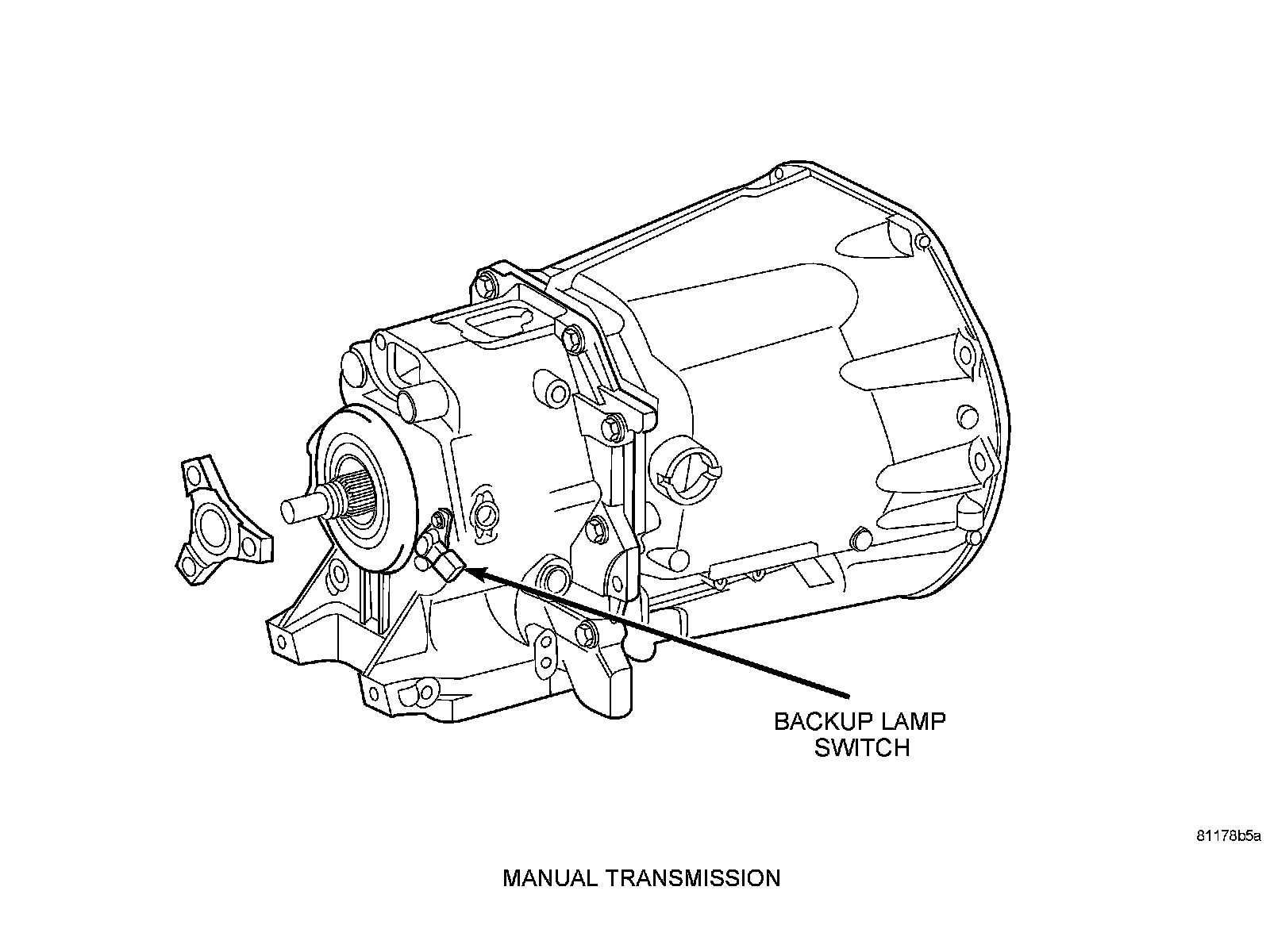

Component Location - 10
