Rear Marker Lamp

REAR MARKER LAMP

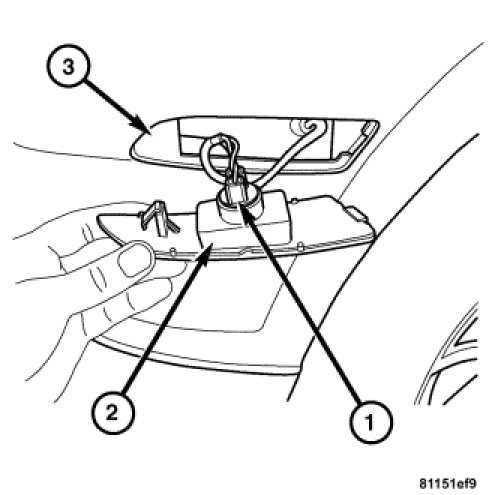

1. Insert the rear marker bulb into the socket (1) and rotate clockwise into the rear marker lamp lens (2).
2. Install the back edge of the rear marker lamp lens first into the fascia (3), then press the forward edge in at the front.
3. Connect the negative battery cable.
