Front Marker Lamp

FRONT MARKER LAMP

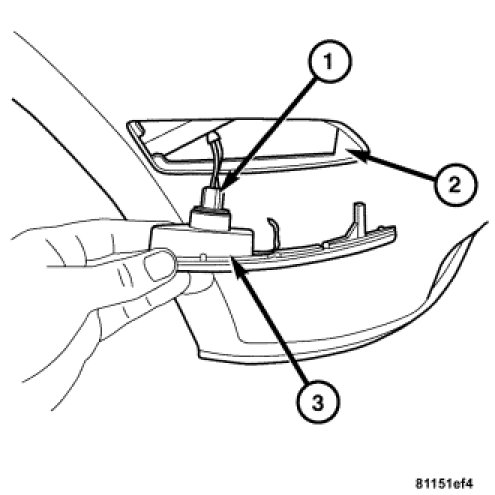

1. Insert the front marker bulb into the socket (1) and rotate clockwise into the front marker lamp lens (3).
2. Install the forward edge of the front marker lamp lens first into the fascia (2), then press the rear edge in at the back.
3. Connect the negative battery cable.
