Front Position Lamp
>>
Removal
Removal
REMOVAL
1.
Disconnect the negative battery cable.
2.
Remove the
headlamp
unit.
Headlamp Unit - Removal
.
3.

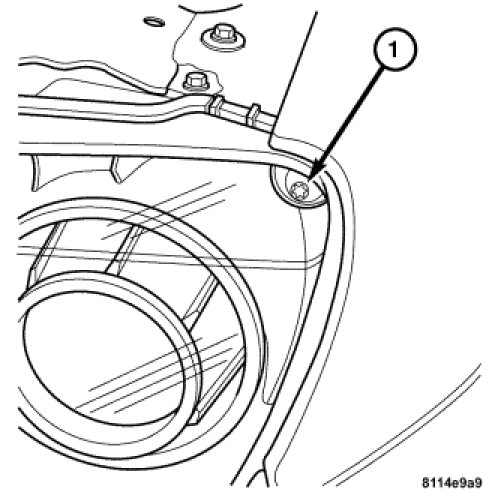

Rotate the front position lamp socket (1) counterclockwise and pull the bulb from the socket.
